ID
1299244
$ 588.11
1-2 weeks delivery time
-
+
The Harken 434 low-load furling system for 3 mm luff wire enables jib furling from the cockpit, with an optional hoistable halyard swivel, supporting lines up to 4 mm and a maximum load of 227 kg, and weighing 215 g.
- Description
- Ask a Question
-

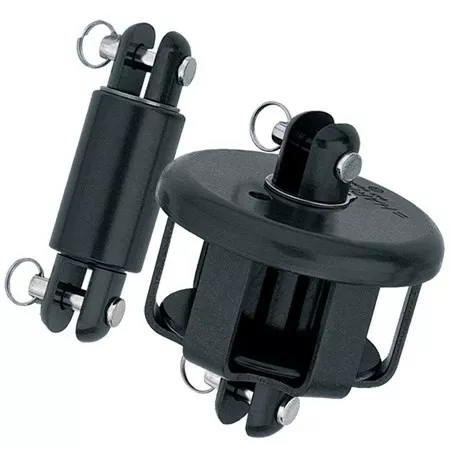

Harken 434 - Low-Load Furling System 3mm Luff Wire
The Harken 434 small boat furling system enables trailerable cruisers or dinghy sailors to set and furl the jib from the cockpit. The system can be fitted with an optional hoistable ball bearing halyard swivel on the headstay, allowing sail adjustments without removing the headstay. The swivel works independently, enabling separate luff tensioning from mast rake.
- Weight: 215 g (7.6 oz)
- Maximum line Ø: 4 mm (5/32 in)
- Maximum working load: 227 kg (500 lb)
- Drum Ø: 73 mm (2 7/8 in)
- Clevis pin Ø: 6.4 mm (1/4 in)
- Pin-to-pin length: 64 mm (2 1/2 in)
- Jaw width: 8 mm (5/16 in)
- Maximum luff wire Ø: 3 mm (1/8 in)
- Boat length - monohull: Under 4.9 m (Under 16 ft)
- Includes upper swivel and drum
- Footnote: Does not include optional hoistable swivel
- Item number: HK434
-
