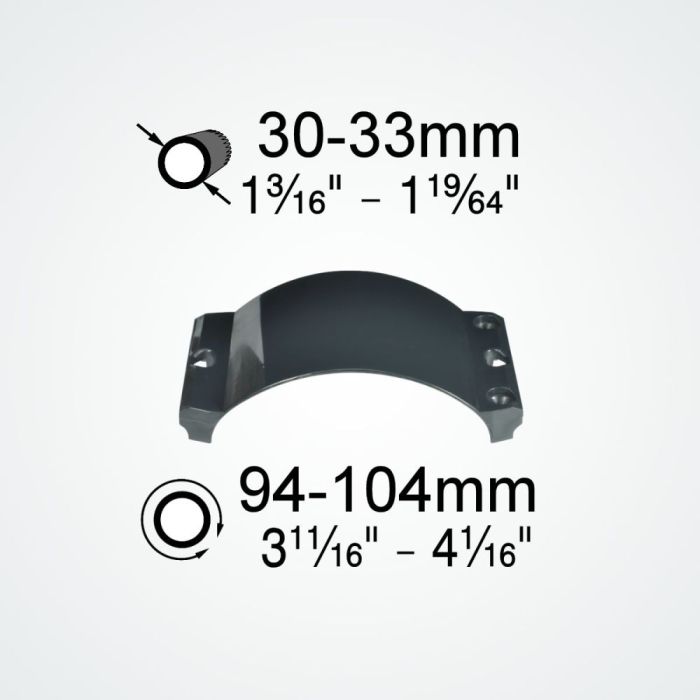

Clamcleat CL105 is a graphite grey nylon boom clamp designed to mount the CL244 cleat on tubes and windsurf booms with diameters of 30–33 mm, corresponding to a circumference of approximately 94–104 mm. Rubber packing between the clamp and tube improves grip, protects metal or carbon surfaces, and can be layered to accommodate slightly smaller diameters.
- Description
- Ask a Question
-
Clamcleat CL105 Boom Clamp for CL244 Cleat, 30–33 mm Tubes, Graphite Grey Nylon

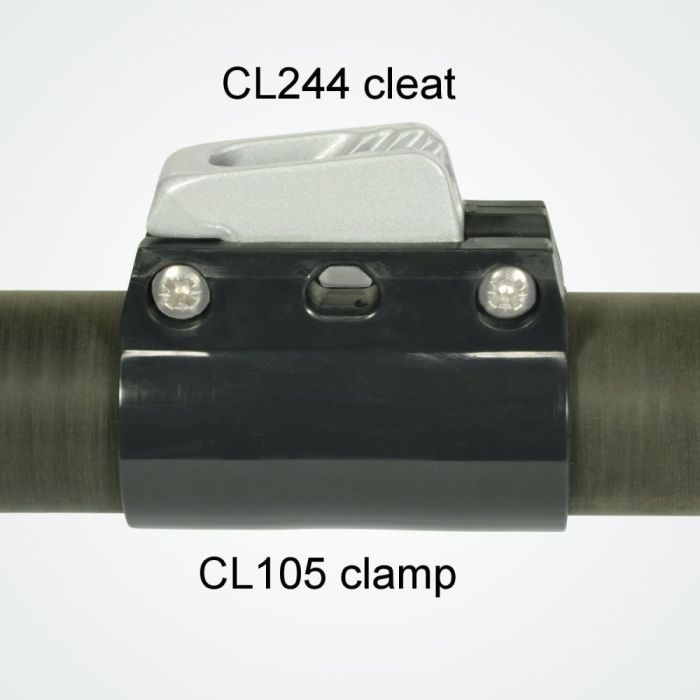

Clamcleat CL105 is a nylon boom clamp designed to mount the CL244 aluminium cleat onto windsurf booms, poles and other tubular structures.
The clamp is designed for tubes from 30 to 33 mm in diameter, corresponding to a circumference of approximately 94–104 mm. Rubber packing is fitted between the clamp and tube to improve grip and protect the surface.

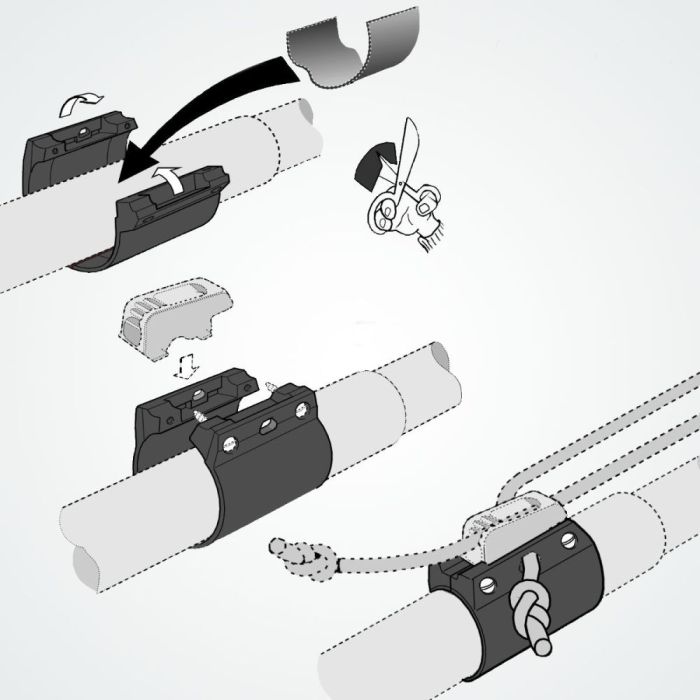

The rubber packing makes the CL105 suitable for use on both metal and carbon tubes. Additional layers of rubber can also be used where a slightly smaller tube diameter needs to be accommodated.
Product Features
- Brand: Clamcleat
- Model: CL105
- Product type: Boom clamp for CL244 cleat
- Material: Nylon
- Colour: Graphite Grey
- Compatible cleat: CL244
- Suitable tube diameter: 30–33 mm
- Suitable tube circumference: 94–104 mm
- Suitable for windsurf booms and tubular structures
- Rubber packing improves grip on the tube
- Rubber packing helps protect metal and carbon surfaces
- Additional rubber layers can accommodate smaller tube diameters
Technical Specifications
Parameter Specification Model CL105 Material Nylon Colour Graphite Grey Compatible Cleat CL244 Tube Diameter 30–33 mm Tube Circumference 94–104 mm Length 58 mm Screw Size 4.2 mm / No. 8 Weight Approx. 15 g -
