The Barton N13150 is a Size 3 single upright block featuring a 45 mm ball bearing sheave for ropes up to 10 mm. Weighing 125 g, it is designed for deck-mounted control systems requiring smooth, low-friction operation and stable line guidance. With a safe working load of 400 kg and break load of 800 kg, it is ideal for mainsheet, vang, and control line applications.
- Description
- Ask a Question
-

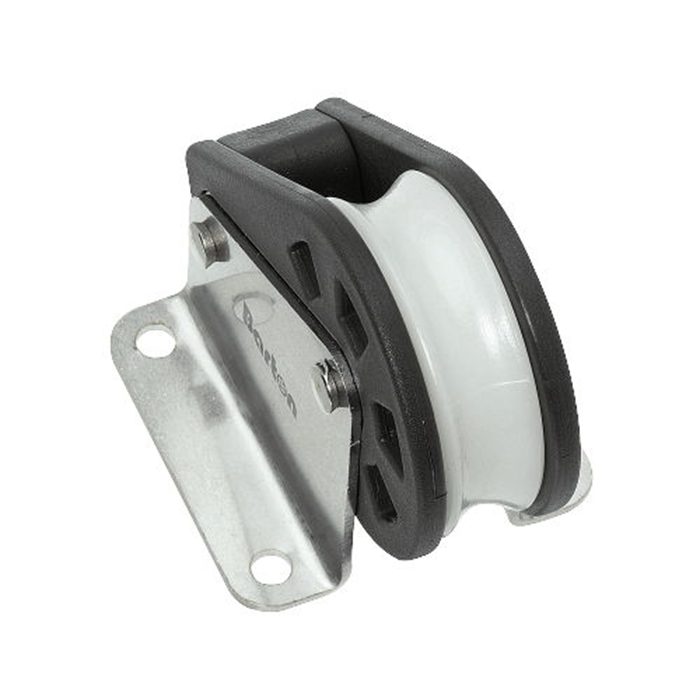

Barton N13150 - Single Upright Block Size 3 45mm – Ball Bearing, Ø45mm Sheave, Max Rope 10mm
The Barton N13150 Single Upright Block is part of the Size 3 (45 mm) range and features a ball bearing sheave for smooth, low-friction performance. The upright design is intended for deck mounting, providing a fixed position to guide control lines efficiently.
Upright blocks are specifically designed to be mounted directly onto the deck, ensuring consistent lead angles and improved line management. The Size 3 range incorporates modern construction with stainless steel frames and advanced materials, including 30% glass fibre reinforced nylon cheeks and acetal sheaves. The ball bearing system is ideal for dynamic applications requiring frequent adjustment and precise control.
Key Features
- Single sheave upright block for deck mounting
- Ball bearing system for smooth, low-friction performance
- Fixed position design for controlled line guidance
- High-strength construction with stainless steel frame
- Lightweight and durable materials
Technical Specifications
Part Number N13150 Block Type Single Upright Block Size Size 3 (45 mm) Sheave Diameter 45 mm x 13 mm (1 3/4" x 33/64") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 400 kg (880 lbs) Break Load 800 kg (1760 lbs) Max Rolling Load 270 kg (595 lbs) Weight 125 g Dimensions 73 × 52 × 61 mm Materials Glass fibre reinforced nylon cheeks, acetal sheave, 316 stainless steel fittings, Delrin ball bearings
Applications
- Deck-mounted control line systems
- Mainsheet and vang setups
- Lead blocks for fixed routing
- Dinghies, dayboats and small cruising yachts
The Barton N13150 delivers smooth and efficient performance in fixed-position installations, making it ideal for applications requiring precise line control and minimal friction.
-
