The Barton N03160 is a Size 3 single cheek block with back plate, featuring a 45 mm plain bearing sheave for ropes up to 10 mm. Weighing 106 g, it is designed for fixed mounting to guide control lines from a stable position. With a safe working load of 400 kg and break load of 800 kg, it provides reliable performance for mainsheet, vang, and lead applications.
- Description
- Ask a Question
-

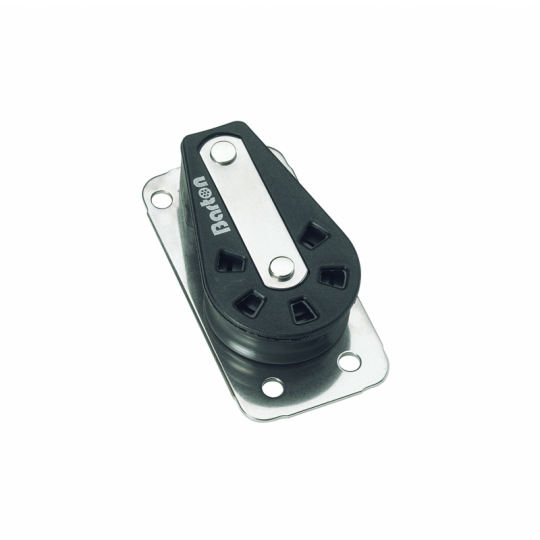

Barton N03160 - Single Cheek Block with Back Plate Size 3 45mm – Plain Bearing, Ø45mm Sheave, Max Rope 10mm
The Barton N03160 Single Cheek Block with Back Plate is part of the Size 3 (45 mm) range and features a plain bearing sheave for dependable load handling. The cheek block design with integrated back plate allows secure mounting directly onto flat surfaces, providing a fixed line lead position.
Cheek blocks are specifically designed to be mounted to decks, masts, or bulkheads to guide control lines efficiently from a fixed point. The Size 3 range incorporates modern construction with stainless steel frames and advanced materials, including 30% glass fibre reinforced nylon cheeks and acetal sheaves, ensuring high strength while maintaining low weight. The plain bearing system is well suited for higher static loads and continuous operation.
Key Features
- Single sheave cheek block with back plate for fixed mounting
- Plain bearing sheave for reliable load handling
- Designed for deck, mast, or bulkhead installation
- Stable line guidance from a fixed position
- High-strength and lightweight construction
Technical Specifications

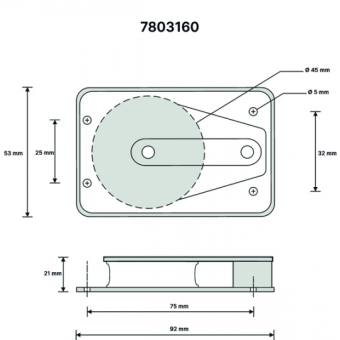

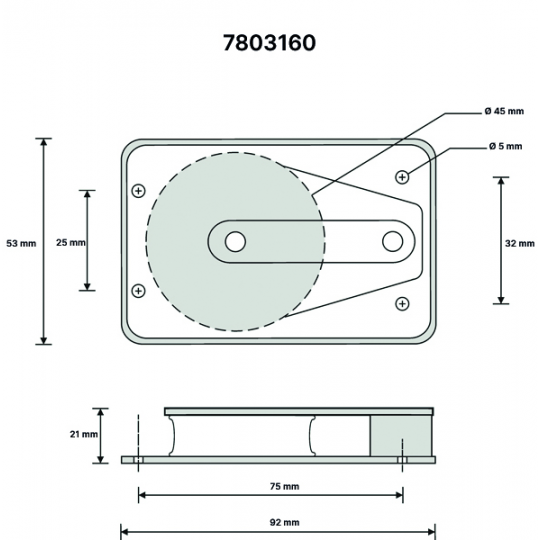

Part Number N03160 Block Type Single Cheek Block with Back Plate Size Size 3 (45 mm) Sheave Diameter 45 mm x 13 mm (1 3/4" x 33/64") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 400 kg (880 lbs) Break Load 800 kg (1760 lbs) Weight 106 g Dimensions 93 × 53 × 23 mm Materials Glass fibre reinforced nylon cheeks, acetal sheave, 316 stainless steel fittings, brass plain bearing
Applications
- Deck-mounted control line systems
- Lead blocks on masts and bulkheads
- Mainsheet and vang routing
- Dinghies, dayboats and small cruising yachts
The Barton N03160 provides a robust and efficient solution for fixed-position line guidance, ensuring reliable performance and clean line management in a wide range of sailing applications.
-
