ID
1360770
$ 232.30
1-2 weeks delivery time
-
+
The Barton N07140 is a Size 7 single snap shackle block with a 70 mm plain bearing sheave, designed for ropes up to 14 mm. Weighing 356 g, it is engineered for high-load applications with a safe working load of 1250 kg and break load of 2500 kg, making it ideal for rigging systems requiring quick attachment and reliable load handling.
- Description
- Ask a Question
-

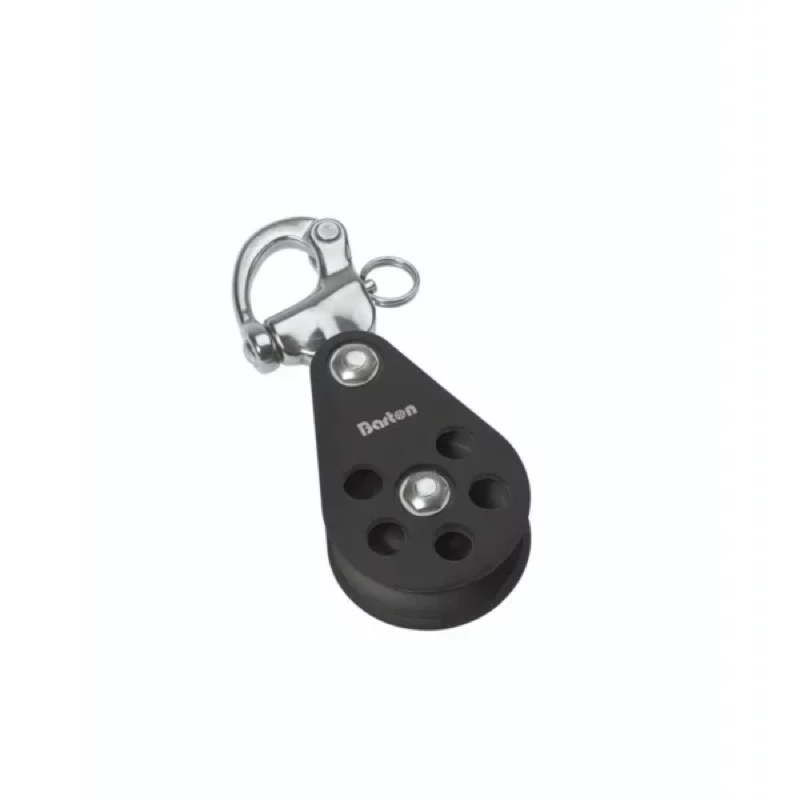

Barton N07140 – Single Snap Shackle Block Size 7 70mm, Plain Bearing, Ø70mm Sheave, Max Rope 14mm
The Barton N07140 Single Snap Shackle Block is part of the heavy-duty Size 7 (70 mm) high load cruising range, engineered for superior strength and durability. Featuring a plain bearing sheave, this block is optimized for high-load static and controlled applications.
The snap shackle attachment allows fast and secure connection and release, making it ideal for applications where quick handling is required. Constructed with glass fibre reinforced nylon side plates and an internal 316 stainless steel frame, the block is through-bolted and riveted for maximum strength and long-term reliability.
Key Features
- Single sheave block with snap shackle attachment
- Plain bearing system optimized for high-load applications
- Quick-release snap shackle for fast connection and removal
- Designed for static and controlled rigging systems
- Glass fibre reinforced nylon side plates
- Internal 316 stainless steel load frame
- Through-bolted and riveted construction for maximum durability
- Suitable for larger cruising and racing yachts
- Weight – 356 g
Technical Specifications
Part Number N07140 Block Type Single Snap Shackle Size Size 7 (70 mm) Sheave Diameter 72 mm x 20 mm (2 53/64" x 3/4") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1250 kg (2750 lbs) Break Load 2500 kg (5500 lbs) Max Rolling Load 875 kg (1929 lbs) Weight 356 g Dimensions 170 × 77 × 41 mm
Applications
- Rigging systems requiring quick attachment and release
- Mainsheet and traveller setups
- Cruising and racing yachts
- Temporary or adjustable rigging configurations
- Applications with sustained loads
The Barton Size 7 block range is engineered for superior strength and performance, featuring reinforced construction and stainless steel load frames for reliable operation under increased loads.
-
