ID
1360768
$ 68.43
1-2 weeks delivery time
-
+
The Barton N07111 is a Size 7 single fixed eye block with becket and a 70 mm plain bearing sheave, designed for ropes up to 14 mm. Weighing 301 g, it is engineered for high-load applications with a safe working load of 1250 kg and break load of 2500 kg, making it ideal for static rigging systems requiring secure rope termination.
- Description
- Ask a Question
-

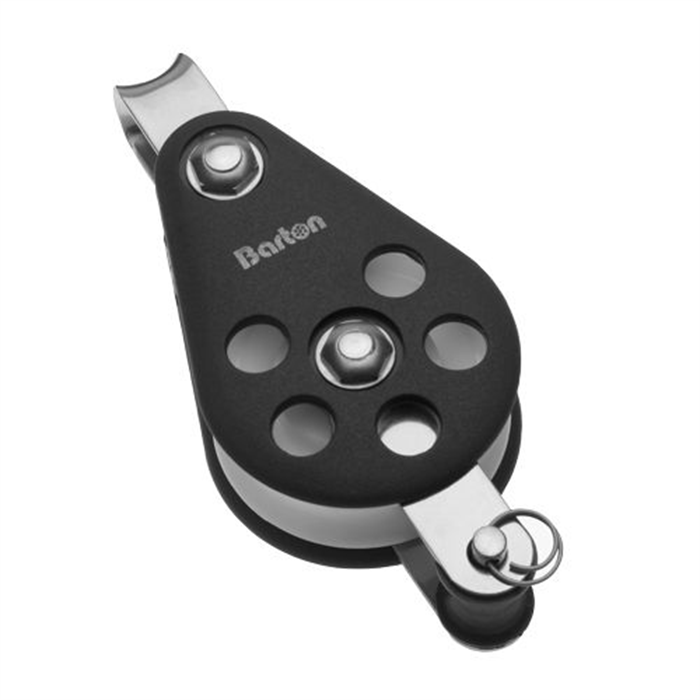

Barton N07111 – Single Fixed Eye Block with Becket Size 7 70mm, Plain Bearing, Ø70mm Sheave, Max Rope 14mm
The Barton N07111 Single Fixed Eye Block with Becket is part of the heavy-duty Size 7 (70 mm) high load cruising range, engineered for superior strength and durability. Featuring a plain bearing sheave, this block is optimized for high-load static applications and long-term reliability.
The fixed eye attachment ensures secure mounting, while the integrated becket provides a reliable rope termination point for use in purchase systems. Constructed with glass fibre reinforced nylon side plates and an internal 316 stainless steel frame, the block is through-bolted and riveted for maximum strength in demanding marine environments.
Key Features
- Single sheave block with fixed eye and integrated becket
- Plain bearing system optimized for high-load applications
- Secure rope termination for purchase systems
- Designed for static and sustained load conditions
- Glass fibre reinforced nylon side plates
- Internal 316 stainless steel load frame
- Through-bolted and riveted construction for maximum durability
- Suitable for larger cruising and racing yachts
- Weight – 301 g
Technical Specifications
Part Number N07111 Block Type Single Fixed Eye + Becket Size Size 7 (70 mm) Sheave Diameter 72 mm x 20 mm (2 53/64" x 3/4") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1250 kg (2750 lbs) Break Load 2500 kg (5500 lbs) Max Rolling Load 875 kg (1929 lbs) Weight 301 g Dimensions 170 × 77 × 41 mm
Applications
- Static purchase systems with rope termination
- Mainsheet and traveller setups
- Control and trimming systems
- Cruising and racing yachts
- Rigging requiring secure fixed mounting
The Barton Size 7 block range is engineered for superior strength and performance, featuring reinforced construction and stainless steel load frames for reliable operation under increased loads.
-
