The Barton 60363 is a flush-mounted deck plate with M8 internal thread and blanking plug, designed for secure and removable fixing points on deck. Manufactured from solid 316 stainless steel with a polished finish, it provides a safe, low-profile installation with sealed thread to prevent water ingress. With a diameter of 50 mm and SWL up to 2000 kg, it is suitable for a wide range of marine fastening applications.
- Description
- Ask a Question
-
Barton 60363 – Flush Deck Plate Ø50mm with M8 Thread & Blanking Plug, SWL 2000kg

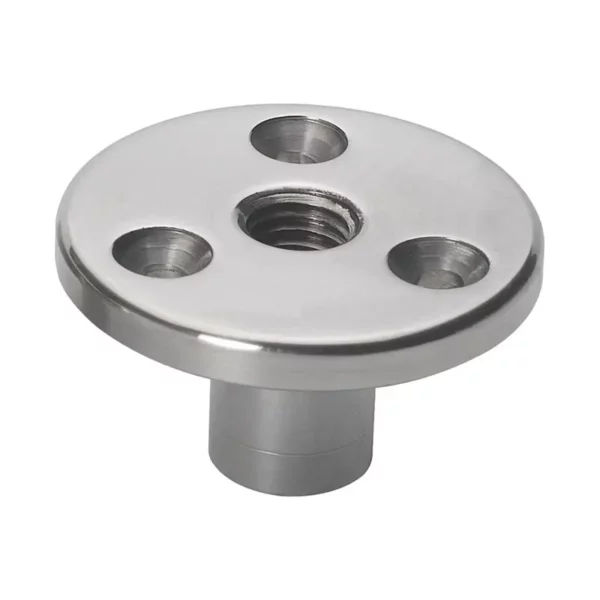

The Barton 60363 Flush Deck Plate is a high-strength, low-profile fixing solution designed for a wide range of marine applications. Manufactured from solid 316 marine-grade stainless steel with a highly polished finish, it provides excellent durability and corrosion resistance in harsh marine environments.
The plate features a central M8 internal thread, allowing the attachment of eye bolts or other fittings as required. When not in use, the included stainless steel blanking plug seals the thread to prevent water ingress and maintain a clean, flush deck surface.
Designed for flush mounting using three fixing bolts, the deck plate minimises trip hazards and provides a safe, unobtrusive installation. Its versatile design makes it suitable for both permanent and temporary attachment points on deck.
Key Features
- Flush-mounted deck plate with internal M8 thread
- Manufactured from solid 316 stainless steel
- Highly polished finish for corrosion resistance
- Includes stainless steel blanking plug
- Sealed thread prevents water ingress
- Low-profile design reduces trip hazards
- Suitable for multiple marine fastening applications
Technical Specifications
Part Number 60363 Product Type Flush Deck Plate Thread Size M8 Diameter 50 mm (1.97") Safe Working Load (SWL) 2000 kg (4100 lbs) Material 316 Marine Grade Stainless Steel Mounting Flush mount, 3 fixing bolts Weight 120 g Dimensions 50 × 50 × 30 mm
Applications
- Temporary fixing eyes and tie-down points
- Deck-mounted boarding ladders
- Davit and lifting points
- Life raft and equipment securing
- Dive tank and gear attachment
The Barton flush deck plate range is engineered for strength, safety, and versatility, providing a reliable and discreet fixing solution for a wide range of onboard applications.
-
