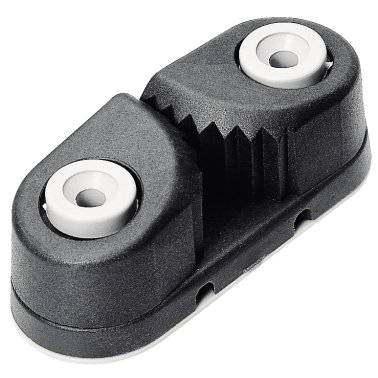

The Barton 70300 is a K Cam Maxi cam cleat made from Kevlar composite, designed for ropes from 10 to 14 mm with a holding power of 260 kg. Featuring a progressive tooth profile for maximum grip with minimal line wear, it offers high strength, low weight, and excellent durability. Stainless steel wear bar and leaf spring mechanism ensure smooth, reliable operation and extended service life.
- Description
- Ask a Question
-
Barton 70300 – K Cam Maxi Kevlar Cam Cleat for Rope Ø10–14 mm, Holding Power 260kg
The Barton 70300 K Cam Maxi is a high-performance cam cleat manufactured from advanced Kevlar composite material, designed for demanding marine applications. This material provides superior strength, low weight, and exceptional wear resistance compared to traditional composites. :contentReference[oaicite:0]{index=0}
The cleat features a progressive tooth design, delivering maximum holding power across a wide range of rope types while minimising wear on both the cam and the line. This ensures reliable performance in both cruising and high-load sailing conditions.
A stainless steel wear bar is integrated into the base to extend service life, while stainless steel leaf springs provide smooth yet positive cam action with greater durability than conventional wire springs.
Key Features
- K Cam Maxi cleat for high-load rope control
- Kevlar composite construction for strength and low weight
- Progressive tooth design for maximum grip with minimal rope wear
- Stainless steel wear bar for extended durability
- Stainless steel leaf springs for smooth, positive action
- Suitable for a wide range of marine applications
- Compatible with optional fairlead accessories
Technical Specifications
Part Number 70300 Product Type K Cam Maxi Cam Cleat Material Kevlar Composite Rope Diameter 10 – 14 mm (9/16") Holding Power 260 kg (573 lbs) Fastening Size 5 mm Fastening Centres 50 mm (2") Weight 50 g Dimensions 81 × 31 × 29 mm
Applications
- Control line cleating systems
- Sheets, control lines and adjustment lines
- Deck hardware for sailing yachts
- Cruising and performance sailing applications
The Barton K Cam range is engineered for maximum holding performance, durability and smooth operation, making it a reliable solution for modern rope handling systems.
-
