The Barton 20900 is a Size 1 mainsheet traveller system kit featuring a 2:1 purchase and a 1.4 metre sliding bolt track, designed for yachts up to 8.5 m (28.5 ft). This complete kit includes a traveller car with single shackle take-off, end fittings with 70° cleats, plastic end caps, and full fitting instructions. The recirculating Delrin ball system ensures smooth, low-friction operation, while the marine-grade aluminium construction with grey anodised finish provides durability. The sliding bolt track allows clean installation and easy retrofit alignment. Weight is 1340 g with overall dimensions of 1400 × 106 × 55 mm.
- Description
- Ask a Question
-
Barton 20900 - Traveller System Kit Size 1 2:1 – 1.4m Sliding Bolt Track, Recirculating Ball Bearing, Complete Mainsheet Kit

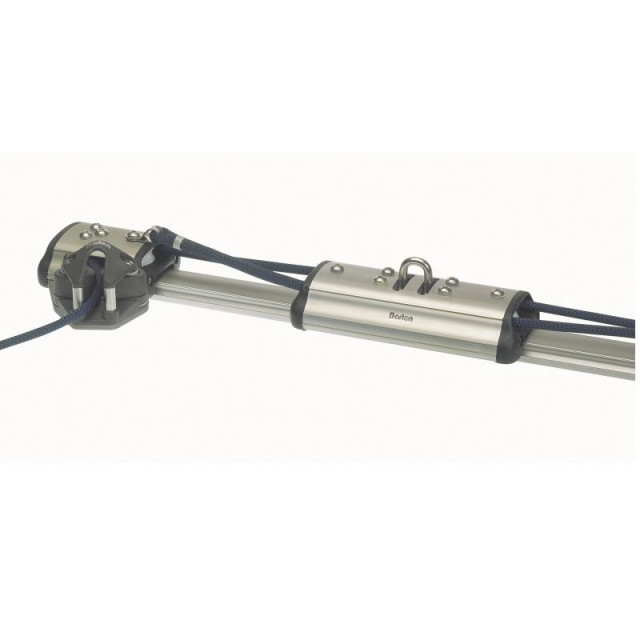

The Barton 20900 Traveller System Kit Size 1 is a complete mainsheet traveller solution designed for yachts up to 8.5 m (28.5 ft). Featuring a 2:1 purchase system and a 1.4 metre sliding bolt track, it delivers efficient sail control in a compact and easy-to-install package.
The system incorporates a recirculating precision-ground Delrin ball bearing mechanism, ensuring smooth, low-friction traveller movement. All major components are manufactured from marine-grade aluminium with a durable grey anodised finish, providing excellent resistance to corrosion and wear.

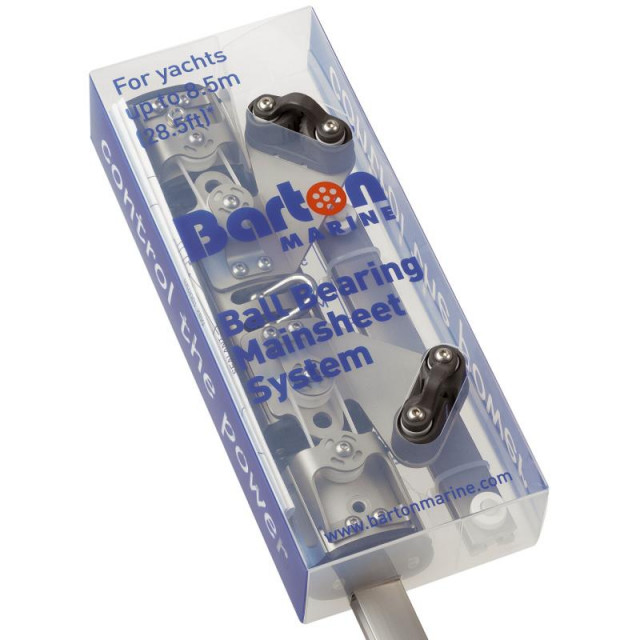

Kit Contents
- 1.4 m sliding bolt track
- Traveller car with single shackle take-off
- End fittings with cleats set at 70°
- Plastic end caps (pair)
- Pilot track
- Full fitting instructions
Key Features
- Complete pre-packaged mainsheet traveller system
- 2:1 purchase configuration for efficient load handling
- Recirculating Delrin ball system for smooth operation
- Sliding bolt track for clean installation and easy retrofit
- Marine-grade aluminium construction with anodised finish
- Optimised for yachts up to 8.5 m (28.5 ft)
Technical Specifications
Part Number 20900 Product Type Traveller System Kit Size Size 1 Purchase Ratio 2:1 Track Type Sliding Bolt Track Track Length 1400 mm Recommended Boat Size Up to 8.5 m (28.5 ft) Material Marine-grade aluminium, grey anodised Bearing System Recirculating Delrin ball bearings Weight 1340 g Dimensions 1400 × 106 × 55 mm
Applications
- Mainsheet traveller systems
- Dinghies and small cruising yachts
- Retrofit and new installations
- Performance and recreational sailing setups
The Barton traveller system kit provides a complete, ready-to-install solution, combining smooth operation, durability, and ease of installation for efficient mainsheet control.
-
