The Barton 25310 is a Size 3 stand-up block with plunger system designed for 25 mm T-section tracks. It features a stainless steel eye fitted to a stainless loop, through-bolted for strength, and includes a 45 mm sheave for lines up to 10 mm. A moulded plastic spring/gaiter keeps the block upright and prevents rope snagging. With a safe working load of 490 kg and break load of 980 kg, it is suitable for yachts up to approximately 7.6 m (25 ft). Weight is 223 g with dimensions of 80 × 42 × 120 mm.
- Description
- Ask a Question
-

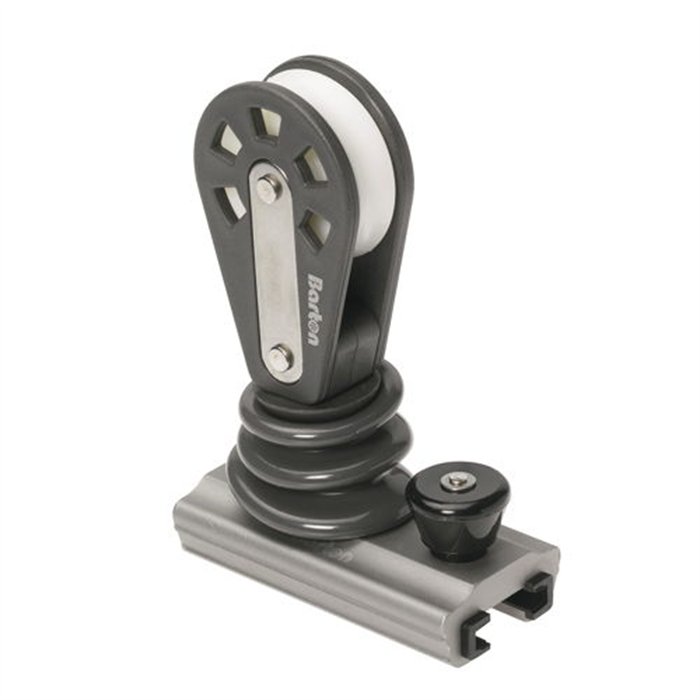

Barton 25310 - Stand-Up Block with Plunger Size 3 – 25mm T Track, 45mm Sheave, SWL 490kg
The Barton 25310 Stand-Up Block is a robust Size 3 block system designed for 25 mm T-section track installations, featuring an integrated plunger mechanism for quick positioning and secure locking.
The block is equipped with a stainless steel eye mounted onto a stainless steel loop, which is through-bolted for enhanced structural strength and reliability under load.
A moulded plastic spring and gaiter maintains the block in an upright position, preventing it from tumbling and reducing the risk of rope snagging, ensuring efficient and safe operation.
Part of Barton’s 25 mm T-track accessory range, this unit incorporates nylon inserts for smooth sliding performance and reduced wear, making it ideal for demanding sailing environments.
Key Features
- Stand-up block with integrated plunger system
- Designed for 25 mm T-section track systems
- Size 3 configuration for medium-load applications
- Stainless steel eye and loop for secure attachment
- Through-bolted construction for enhanced strength
- 45 mm sheave for smooth rope handling
- Supports lines up to 10 mm diameter
- Spring-loaded base prevents block tumbling
- Reduces rope snagging and improves safety
- Moulded nylon inserts for smooth running
Technical Specifications
Part Number 25310 Product Type Stand-Up Block with Plunger Track Compatibility 25 mm T-section track Sheave Size 45 mm (1 3/4") Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 490 kg (1080 lbs) Break Load 980 kg (2160 lbs) Weight 223 g Dimensions 80 × 42 × 120 mm
Applications
- Mainsheet and control line systems
- T-track mounted block setups
- Dinghies, dayboats and small cruising yachts
- Adjustable deck hardware configurations
The Barton stand-up block delivers a durable, stable and efficient solution, ensuring smooth operation, secure positioning and reliable performance in a wide range of sailing applications.
-
