The Barton 32312 is a Size 7 stand-up block with a 72 mm sheave, designed for 32 mm T-section tracks and ropes up to 14 mm. Featuring a stainless steel eye and loop with through-bolted construction, it delivers a safe working load of 1400 kg and break load of 2800 kg, with a moulded spring/gaiter to prevent tumbling and rope snagging.
- Description
- Ask a Question
-
Barton 32312 – Stand-Up Block Size 7 72mm for 32mm T Track, Plain Bearing, Max Rope 14mm, SWL 1400kg

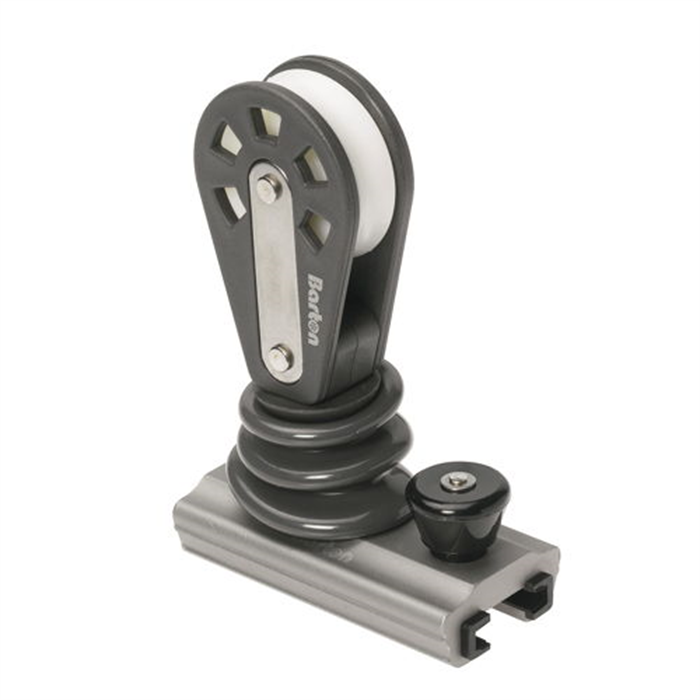

The Barton 32312 Stand-Up Block is a Size 7 block with a 72 mm sheave, designed for installation on 32 mm T-section tracks. Engineered for high load applications, it is suitable for use with lines up to 14 mm, making it ideal for larger yachts and demanding deck layouts.
The block features a stainless steel eye mounted on a stainless steel loop, which is through-bolted for maximum strength. A moulded plastic spring/gaiter keeps the block upright under load, preventing tumbling and reducing the risk of rope snagging, ensuring smooth and controlled operation.
Key Features
- Stand-up block for 32 mm T-section track systems
- Large 72 mm sheave for high load applications
- Suitable for rope diameters up to 14 mm
- Stainless steel eye and loop construction
- Through-bolted assembly for enhanced strength
- Moulded spring/gaiter prevents block tumbling
- Reduces rope snagging and improves line handling
Technical Specifications
Part Number 32312 Product Type Stand-Up Block Size Size 7 Track Compatibility 32 mm T-section track Sheave Diameter 72 mm (2 53/64") Bearing Type Plain bearing Max Rope Diameter 14 mm (35/64") Safe Working Load (SWL) 1400 kg (3086 lbs) Break Load 2800 kg (6172 lbs) Weight 565 g Dimensions 109 × 52 × 170 mm
Applications
- Mainsheet and control line systems
- High load deck turning blocks
- Track-mounted lead systems
- Cruising and performance yacht rigging
The Barton Size 7 stand-up blocks are designed for high strength, stability, and efficient line handling, making them a reliable choice for demanding sailing applications where controlled lead angles and load capacity are critical.
-
