ID
1360371
$ 1,319.01
1-2 weeks delivery time
-
+

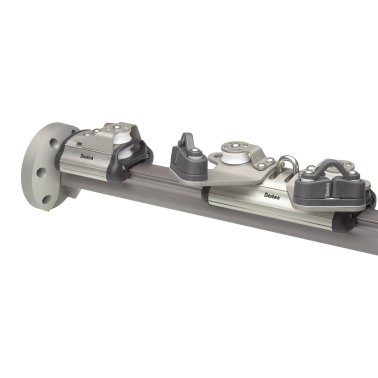

The Barton 20910 is a Size 1 removable mainsheet traveller system kit designed for yachts up to 8.5 m (28.5 ft), featuring a 1.0 metre beam track and 4:1 purchase system with cleats on the traveller. Engineered to span cockpit seating, it can be quickly installed or removed to maximise cockpit space when not in use. The system uses a reinforced beam track with unsupported spans up to 400 mm and a quick-lock mounting mechanism with removable end plates. Manufactured from marine-grade aluminium with anodised finish, it ensures durability and smooth operation. Weight is 2550 g with overall dimensions of 1000 × 100 × 80 mm.
- Description
- Ask a Question
-
Barton 20910 - Removable Mainsheet System Kit Size 1 – 1.0m Beam Track, 4:1 Purchase, Complete Cockpit-Spanning System
The Barton 20910 Removable Mainsheet System Kit Size 1 is a versatile traveller system designed for yachts up to 8.5 m (28.5 ft). Featuring a 1.0 metre beam track and a 4:1 purchase system with cleats on the traveller, it delivers efficient sail control while maintaining flexibility in cockpit layout.
This system is specifically engineered to span between cockpit seats during sailing and can be quickly removed when not in use, providing maximum onboard space. The track is secured using removable end plates and a vertical locking mechanism, allowing fast installation and removal without tools.
Kit Contents
- 1.0 m beam track (Size 1)
- Traveller car with cleats on traveller
- End fittings (pair)
- Removable track end plates (pair)
- Control line blocks (pair)
- Traveller cleat plate assembly
- Full fitting instructions
Key Features
- Removable mainsheet traveller system for cockpit installations
- 4:1 purchase system for enhanced control
- Beam track design for unsupported spans
- Quick installation and removal with locking mechanism
- Designed to span cockpit seating areas
- Marine-grade aluminium construction with anodised finish
- Optimised for yachts up to 8.5 m (28.5 ft)
Technical Specifications
Part Number 20910 Product Type Removable Traveller System Kit Size Size 1 Purchase Ratio 4:1 Track Type Beam Track Track Length 1000 mm Max Unsupported Span 400 mm Recommended Boat Size Up to 8.5 m (28.5 ft) Material Marine-grade aluminium, anodised Weight 2550 g Dimensions 1000 × 100 × 80 mm
Applications
- Mainsheet traveller systems across cockpit seating
- Convertible cockpit layouts
- Retrofit of coachroof-mounted mainsheet systems
- Cruising yachts requiring flexible deck space
The Barton removable mainsheet system provides a highly practical and flexible solution, allowing sailors to combine efficient sail control with maximum cockpit usability.
-
