The Tecnoseal 01852 is a zinc sacrificial anode designed for the transom bracket of OXE Diesel outboard engines, replacing OEM part number 30-0113-052. It measures 208 mm in overall length, 47 mm in width and 50 mm in height, with a mounting dimension (i) of 184 mm. Additional measurements include h1 = 15 mm, b = 10 mm and c = 13.50 mm. The anode weighs 0.92 kg (2.03 lbs) and features a raised bracket design with mounting holes at both ends, helping protect compatible engine mounting components against galvanic corrosion.
- Description
- Ask a Question
-

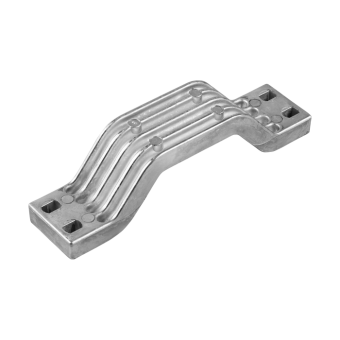

Tecnoseal 30-0113-052 OXE Diesel Zinc Transom Bracket Anode 208 mm
The Tecnoseal 01852 is a zinc sacrificial anode designed for the transom bracket of OXE Diesel outboard engines. It helps protect the engine mounting assembly and compatible submerged metal components against galvanic corrosion.

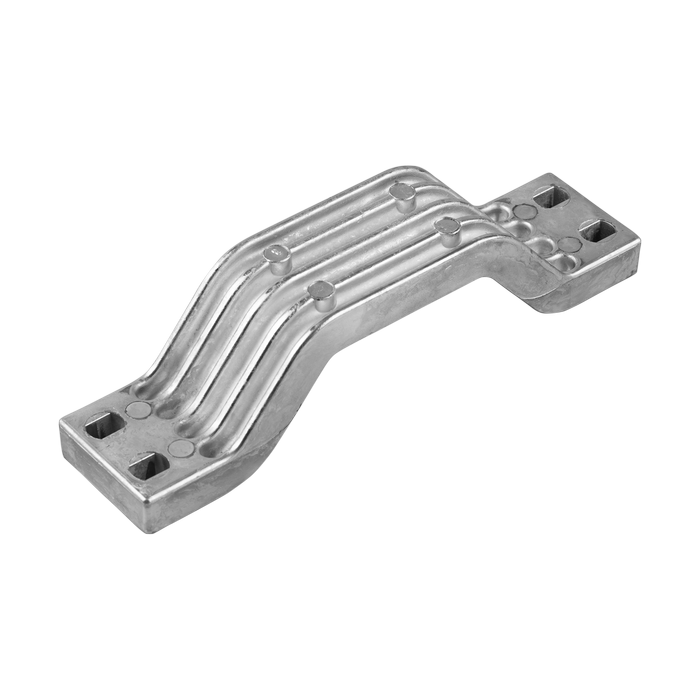

The anode features an elongated bracket design with a raised central section and mounting holes at both ends. It measures 208 mm in overall length, 47 mm in width and 50 mm in height. The mounting dimension (i) is 184 mm, with additional dimensions h1 = 15 mm, b = 10 mm and c = 13.50 mm. Its weight is 0.92 kg (2.03 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 01852 Product Type Transom Bracket Anode Material Zinc Engine Manufacturer OXE Diesel OEM Part Number 30-0113-052 Weight 0.92 kg (2.03 lbs) Overall Length (l) 208 mm Width (a) 47 mm Overall Height (h) 50 mm Dimension h1 15 mm Mounting Dimension (i) 184 mm Dimension b 10 mm Dimension c 13.50 mm
Compatibility and References
- Engine Brand: OXE Diesel
- Application: Outboard Engine Transom Bracket
- OXE Diesel OEM Reference: 30-0113-052
- Tecnoseal Part Number: 01852
Key Features
- Zinc sacrificial anode for OXE Diesel outboard transom brackets.
- Helps protect compatible engine mounting components against galvanic corrosion.
- Raised bracket design with mounting holes at both ends.
- Overall dimensions: 208 x 47 x 50 mm.
- Mounting dimension (i): 184 mm.
- Additional dimensions: h1 = 15 mm, b = 10 mm and c = 13.50 mm.
- Weight: 0.92 kg (2.03 lbs).
- Corresponds to OXE Diesel OEM part 30-0113-052.
-
