The Tecnoseal 01851 is a zinc sacrificial anode designed for the transom bracket of OXE Diesel outboard engines, corresponding to OEM part number 30-0113-032. It measures 202 mm in overall length (l), 47 mm in width (a) and 52 mm in overall height (h), with a mounting dimension (i) of 183 mm, h1 of 17 mm, c of 11 mm and b of 6.50 mm. Weighing 0.92 kg (2.03 lbs), this bracket-shaped anode helps protect compatible metal components against galvanic corrosion. It is also listed as equivalent to Tecnoseal 01112.
- Description
- Ask a Question
-

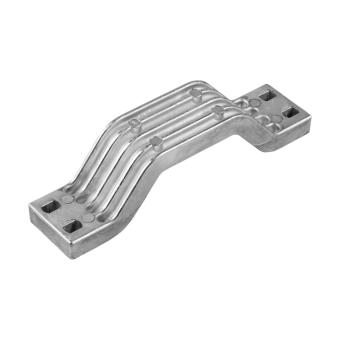

Tecnoseal 30-0113-032 OXE Diesel Zinc Transom Bracket Anode 202 mm
The Tecnoseal 01851 is a zinc sacrificial anode designed for the transom bracket of OXE Diesel outboard engines. It helps protect compatible metal components against galvanic corrosion, providing a replaceable protective anode for the engine mounting assembly.

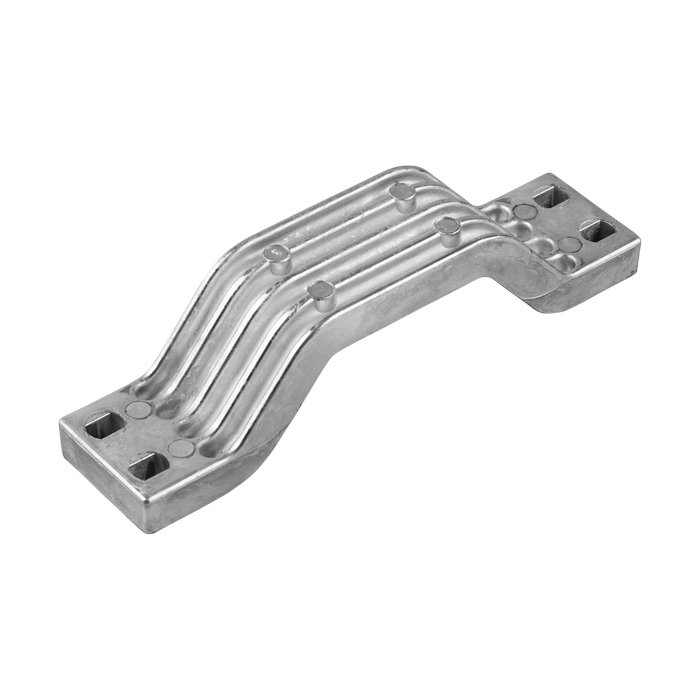

The anode features an elongated, raised bracket shape with mounting holes at both ends. It measures 202 mm in overall length, 47 mm in width and 52 mm in height. The mounting dimension (i) is 183 mm, with additional dimensions h1 = 17 mm, c = 11 mm and b = 6.50 mm. Its weight is 0.92 kg (2.03 lbs).
Technical Specifications
Manufacturer Tecnoseal Tecnoseal Part Number 01851 Product Type Transom Bracket Anode Material Zinc Engine Manufacturer OXE Diesel OEM Part Number 30-0113-032 Same As Tecnoseal 01112 Weight 0.92 kg (2.03 lbs) Overall Length (l) 202 mm (7.95 in) Width (a) 47 mm (1.85 in) Overall Height (h) 52 mm (2.05 in) Dimension h1 17 mm (0.67 in) Mounting Dimension (i) 183 mm (7.20 in) Dimension c 11 mm (0.43 in) Dimension b 6.50 mm (0.26 in)
Compatibility and References
- Engine Brand: OXE Diesel
- Application: Outboard Engine Transom Bracket
- OXE Diesel OEM Reference: 30-0113-032
- Tecnoseal Part Number: 01851
- Equivalent Tecnoseal Reference: 01112
Key Features
- Zinc sacrificial anode for OXE Diesel outboard transom brackets.
- Helps protect compatible metal components against galvanic corrosion.
- Raised bracket design with mounting points at both ends.
- Overall dimensions: 202 mm length, 47 mm width and 52 mm height.
- Mounting dimension (i): 183 mm.
- Additional dimensions: h1 = 17 mm, c = 11 mm and b = 6.50 mm.
- Weight: 0.92 kg (2.03 lbs).
- Corresponds to OXE Diesel OEM part 30-0113-032.
- Same as Tecnoseal 01112.
-
