The Whale BE1484 Orca Auto 1300 is an automatic 24V DC submersible bilge pump with an integrated electronic level sensor (internal sensor switch) for automatic operation without separate switches or sensors. It delivers up to 82 L/min (1300 US GPH) with 69 L/min (1100 US GPH) at 1 m head, draws 2.5 A, and uses a 5 A fuse. The pump has a hydrocarbon-resistant ABS body with nitrile seals and an acetal impeller, supports 25 mm (1 inch) or 28.5 mm (1-1/8 inch) outlet hose, and is sized 168 x 121 x 129 mm with a weight of 0.9 kg; it is CE certified, meets ISO8849, and includes a 1-year warranty.
- Description
- Ask a Question
-

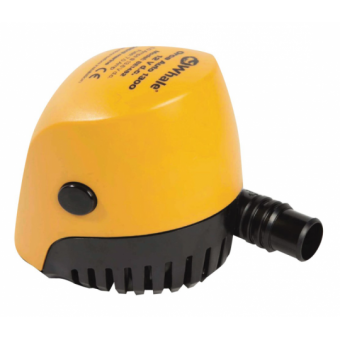

Orca Auto 1300 24V Submersible Bilge Pump with Internal Sensor
The Whale BE1484 is a compact automatic submersible bilge pump designed for efficient bilge water removal. Its integrated electronic level sensor provides automatic on/off operation without separate float switches, and the durable ABS construction supports reliable marine use.
Technical Specifications

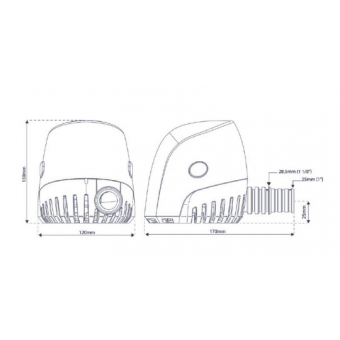

Brand Whale Model BE1484 Series Orca Auto 1300 Product Category Submersible bilge pumps Voltage 24V DC Max Capacity 82 L/min (4,920 L/h, 1300 US GPH) Capacity at 1 m Head 69 L/min (3,900 L/h, 1100 US GPH) Current Draw 2.5 A Fuse 5 A Maximum Recommended Head 4.5 m (14.8 ft) Maximum Pump Head Over 4.27 m Automatic Operation Yes Outlet / Hose Connection 25 mm (1 inch) or 28.5 mm (1-1/8 inch) Hose Size Compatibility 25 mm (1 inch); 28 mm (1-1/8 inch) Wire Size 1.5 mm² (16 AWG) Primary Construction Plastic Materials ABS pump body; nitrile seals; acetal impeller Dimensions (W x D x H) 168 x 121 x 129 mm Weight 0.9 kg Warranty 1 year Certifications / Compliance CE certified; meets ISO8849; conforms to ISO15083, ISO8846, ISO10133 Whale Reference 71954 FNI Product Number 1603011 EAN 766478946416 Article Number 17540105
Features
- Integrated electronic level sensor for automatic operation (no separate switches or sensors required)
- Compact design with a large suction / water exposure surface
- Hydrocarbon-resistant (oil-resistant) ABS construction
- Simple installation with two screws on the bottom
- No external parts required for connection
- Sensor operation is designed to compensate for wave action
Product Details
This bilge pump is specified with a straight hose connection option in either 25 mm (1 inch) or 28 mm to 28.5 mm (1-1/8 inch) sizing, supporting flexible installation in marine bilge spaces while maintaining automatic control via its internal sensor.
-
