ID
1172909
$ 213.58
1-2 weeks delivery time
-
+
The Whale Orca 1300 automatic submersible bilge pump is a 12V DC unit with an integrated electronic level sensor (electric field sensor) for automatic on/off operation without a separate float switch. It delivers 82 LPM open flow (1300 US GPH) and 69 LPM at 1 m head (1100 US GPH), draws 5A (7.5A fuse), and supports 25 mm (1 inch) or 28 mm (1-1/8 inch) hose connections. The ABS housing is hydrocarbon-resistant with nitrile seals and an acetal impeller; dimensions are 168 x 121 x 129 mm, weight is 0.9 kg, and it is CE certified and meets ISO8849 (also stated to conform to ISO15083, ISO8846, and ISO10133) with a 1-year warranty.
- Description
- Ask a Question
-

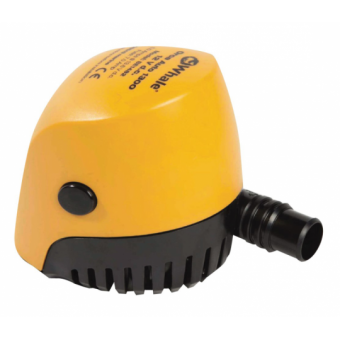

Orca 1300 Automatic 12V Submersible Bilge Pump
The Whale BE1482 is an automatic bilge pump from the Orca range designed for hands-free bilge water removal in marine applications. An integrated sensor controls automatic switching, eliminating the need for a separate float switch, and the snap-on opening supports straightforward access for maintenance.
Features
- Automatic operation via integrated electronic level sensor (electric field sensor)
- No separate float switch required
- Simple installation with only two screws at the bottom and no external parts needed
- Hydrocarbon-resistant ABS construction with an oil-resistant ABS cover
- Snap-on opening for easier access and maintenance
- Compact design with a large suction surface
- Sensor compensates for wave action (as stated)
Technical Specifications

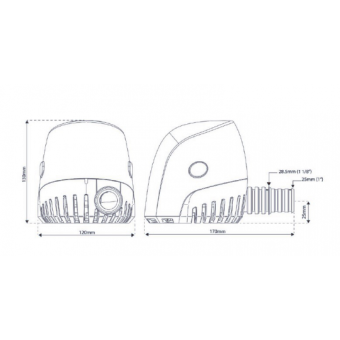

Brand Whale Model BE1482 (Orca 1300) Voltage 12V DC Flow Rate (Open Flow) 82 L/min (1300 US GPH); 4,920 L/h Flow Rate (at 1 m Head) 69 L/min (1100 US GPH); 3,900 L/h Current Draw 5A Fuse 7.5A Maximum Pump Head Over 4.27 m Maximum Recommended Head 4.5 m (14.8 ft) Hose Connection Sizes 25 mm (1 inch) / 28 mm (1-1/8 inch) Wire Size 1.5 mm² (16 AWG) Materials ABS pump body, nitrile seals, acetal impeller Primary Construction Plastic Dimensions (W x D x H) 168 x 121 x 129 mm Weight 0.9 kg Certifications / Standards CE certified; meets ISO8849; also stated to conform to ISO15083, ISO8846, and ISO10133 Warranty 1 year Article Number 17540104 Whale Reference 71953 Italian Nautical Supplies Reference 1603010 Product Number 1603010 FNI EAN 766478946409 -
