ID
1262143
$ 195.31
1-2 weeks delivery time
-
+
The Rule RM800B-24 fully automatic submersible bilge pump is a 24V DC unit rated at 3028 liters per hour and designed for marine water removal with low power consumption. It uses an integrated sensor for automatic activation at a 6 cm water level, includes a backup safety function that switches to a computer-controlled cycle after 2.5 minutes if the sensor is blocked, and features ventilated housing, thermal protection, a removable strainer, and a non-return valve. Connections include a 19 mm outlet and thread sizes of 3/4 inch and 1 inch, with listed power consumption of 1.5 Ah and a max amperage of 2A (4A fuse).
- Description
- Ask a Question
-

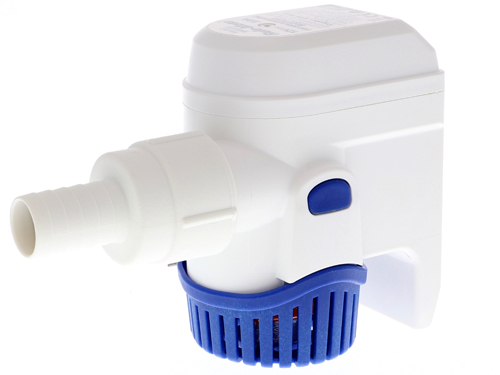

Rule RM800B-24 Automatic Submersible Bilge Pump (24V)
The Rule RM800B-24 is a fully automatic bilge pump for 24-volt marine systems. It uses an integral sensing system to start pumping when water rises, and incorporates protective logic to help keep the pump operating safely if the sensor is blocked or flow is restricted.
Features
- Automatic activation at 6 cm water level via built-in sensor
- Backup safety function switches to computer-controlled operation after 2.5 minutes if the sensor becomes blocked
- Flow blockage detection and automatic change to computer-controlled mode
- Ventilated housing to help avoid air locks
- Integrated thermal protection
- Robust snap-lock attachment
- Quiet, spark-free operation
- Power cable with silicone coating
- Removable strainer for cleaning
- Non-return valve to help prevent backflow into the bilge
- Threaded hose nozzles for installation and maintenance
- Low power consumption
- Important: The included non-return valve fits only straight hose nozzles
Technical Specifications
Brand Rule Model RM800B-24 Order Number 00304583 Supplier Code RM800B-24 Barcode 042237106254 Product Portfolio Submersible bilge pumps Voltage 24 Volts (24V DC) Yield 3028 liters per hour Output (Listed) Up to 56 liters per minute (12 gallons per minute) Capacity at Zero Head (Listed) 3,562 l/h (942 GPH) Capacity at 2 m Head (Listed) 1,575 l/h (416 GPH) Maximum Recommended Discharge Head (Listed) 3 meters Automatic Start Level (Listed) 6 cm water level Control Backup Cycle (Listed) Every 2.5 minutes On/Off Water Levels (Listed) On at approximately 2-1/2 inch; off at 5/8 inch Hose Connection Diameter 19 mm Connections (Listed) 25 mm (1 inch) NPSM thread or 19 mm (3/4 inch) ID hose Thread Sizes (Listed) 3/4 inch and 1 inch Power Consumption (Listed) 1.5 Ah Max Amperage (Listed) 2A Fuse Size (Listed) 4A Material (Listed) Tough plastic body Dimensions (HxWxD) 112 x 74 x 163 mm Dimensions (HxLxW) (Listed) 112 x 130 x 73 mm Dimensions (WxDxH) (Listed) 88 x 73 x 112 mm Weight (Listed) 0.48 kg (approx. 0.68 kg packed) Shipping Weight (Listed) 1.00 kg Packaged Dimensions (Listed) 18.00 x 8.00 x 20.00 cm Motor Life (Listed) Approximately 1500 hours of operation Duty Rating (Listed) Intermittent duty rating
Compatibility
- Alternate to RuleMate RM750-24
- Alternate to RuleMate RM750A-24
Product Details
This pump is described as ignition protected and includes air vents to help avoid air locks during installation. It is intended for bilge pumping and is also listed for uses such as deck showers and water transfer.
-
