ID
1316975
$ 8,127.02
1-2 weeks delivery time
-
+
This Air Membrane Pump with a 2" internal thread and Teflon membrane operates continuously without damage when running dry and maintains suction under dry conditions. It is highly effective for viscous substances such as lubricating oils and is commonly used to drain open excavations and in the food and chemical industries. The ATEX-certified model is designed for hazardous environments like tankers, handling petrol and chemicals with a maximum discharge head of 70 meters and a free flow rate of 37,000 liters per hour.
- Description
- Ask a Question
-

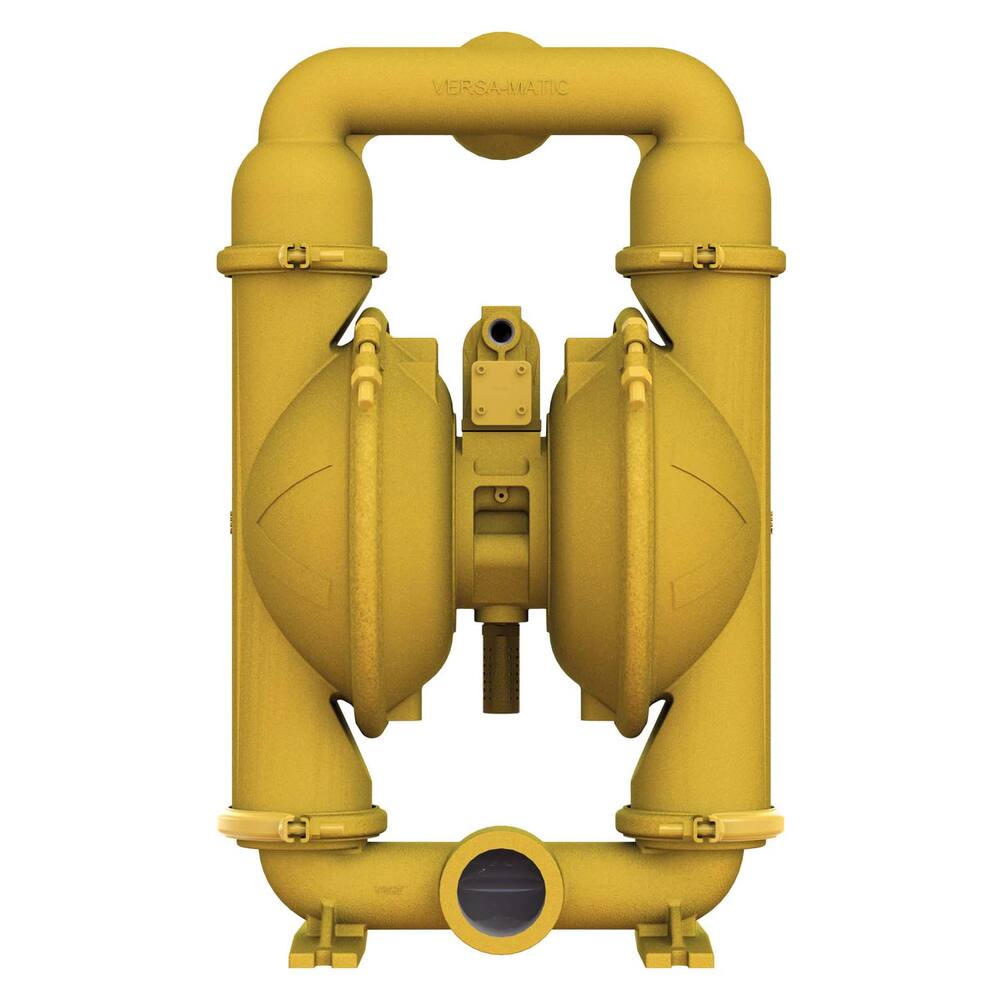

Air Membrane Pump 2" Internal Thread Teflon ATEX
This pump operates continuously without damage when running dry and maintains suction under dry conditions. It is highly effective for pumping viscous substances such as lubricating oils. Commonly employed to drain open excavations and widely used in the food and chemical industries, it also functions as a submersible pump. The ATEX-certified version is specially designed for hazardous environments like tankers with explosion risks.
- Air pressure: Maximum 7 bar
- Pump type: Self-priming membrane pump
- Motor type: Pneumatic piston motor
- Shaft sealing: Not applicable
- Material membrane/balls/valves/seats: Teflon (also available in NBR, neoprene, EPDM, Viton)
- Material pump chamber/housing: Aluminium (also available in cast iron, stainless steel 316)
- Material pump shaft: Not applicable
- Liquids suitable for TEFLON: Unleaded petrol, various chemicals
- ATEX classification: II 2GD IIB Tx
- Note: Warranty void without air filter and water separator
- Viscosity significantly affects capacity
- Capacities with water (Teflon capacities approx. 20% lower):
- 10 m head: 34,200 L/h
- 20 m head: 31,200 L/h
- 30 m head: 27,600 L/h
- 40 m head: 24,300 L/h
- 50 m head: 20,400 L/h
- 60 m head: 16,800 L/h
- Suction head Teflon: 9.1 m, dry 3.0 m
- Air supply: 1/2" internal thread
- Air consumption: Approximately 25% more than capacity multiplied by pressure
- Dimensions (WxDxH): approx. 450 x 333 x 677 mm
- Weight: 36.7 kg
- Product code: 92.90.551
- Suction head: 9.8 m
- Pipe diameter pressure & suction: 2"
- Membrane material: Teflon
- Mediums handled: Water, water with oil (sludge), petrol, chemicals, gasoil, lubricating oil
- Maximum particle size: 12 mm
- Max discharge head: 70.0 m
- ATEX certified: Yes
- Free flow rate: 37,000 L/h
- Capacity at 5 m head: 37,000 L/h
-
