The Johnson Pump 81-47442-02 conversion kit pump assembly upgrades 24V standard electric marine toilet installations with a combined discharge and rinse pump for raw water (not intended for onboard potable water systems). It is self-priming up to 0.6 m head with a maximum discharge height of 1.2 m, uses push-button control, and includes hose connections plus an adaptor for 38 mm waste plumbing. With 20A current demand (20A fuse recommended), compact dimensions of 79 mm (H) x 197 mm (W) x 344 mm (L), and components supplied for installation, it supports Johnson Pump AquaT standard models, allpa Space Saver electric toilets, and manual-to-electric conversions that use a standard bowl base pattern.
- Description
- Ask a Question
-
Johnson Pump 81-47442-02 24V Electric Toilet Conversion Pump Kit
The Johnson Pump 81-47442-02 conversion kit is a standard electric pump assembly built for marine toilet applications. It combines discharge and rinse functions for raw water systems and is intended to keep 24V toilet installations operating effectively while providing the required hose connections and conversion components.
Application
- Combined discharge and rinse pump for raw water
- Not designed to be connected to the onboard potable water system
- Conversion for the Manual Johnson Pump Marine Toilet
- Also suitable for other marine toilets using a “standard” bowl configuration with a 95.3 mm (3-3/4 inch) diameter bolt circle and 4-hole base pattern
- Replacement parts tailored for Johnson Pump AquaT standard models
- Replacement parts tailored for allpa Space Saver electric toilets
- For a separate external flush system with a flush pump, or an existing central fresh water system with a solenoid
Technical Specifications
Brand Johnson Pump Part Number 81-47442-02 Article Number 66814744202 Voltage 24V Current / Recommended Fuse 20A / 20A Self-Priming Up to 0.6 m head Maximum Discharge Height 1.2 m Inlet Connection 20 mm ID inlet hose Discharge Connection 25.4 mm (1 inch) discharge hose Waste Plumbing Adaptor Adaptor included for 38 mm (1-1/2 inch) waste plumbing Dimensions (H x W x L) 79 mm x 197 mm x 344 mm Shipping Weight 3.50 kg Product Portfolio Electric Toilets
Product Details
- Includes a combined discharge and rinse pump for raw water
- Operated via a push-button control switch; a control panel is supplied (described as a two-switch panel)
- Characteristic operating noise is noted during operation

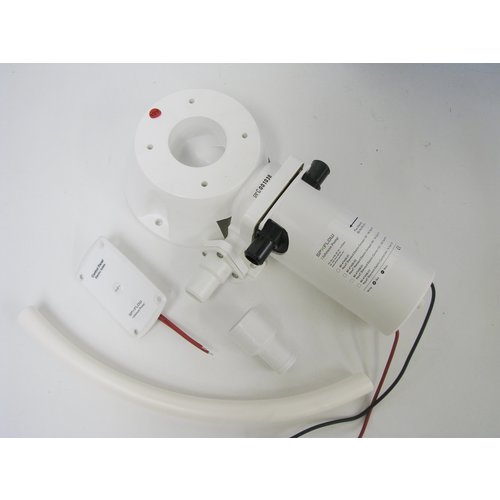

- Conversion kit contents include the complete motorized base assembly, bowl gasket, four bolts and washers for the bowl, 20 mm ID white hose, 1 inch to 1-1/2 inch discharge port adaptor, and a control switch
- Includes discharge pump, base, plug connector, and control panel
Features
- Combined function discharge and rinse pumping in one assembly
- Self-priming capability up to 0.6 m head supports practical installation layouts
- Installation-ready connections with included adaptor for 38 mm waste plumbing
- 24V operation with 20A fuse recommendation for system protection
-
