The Johnson Pump 81-47442-01 conversion kit pump assembly upgrades or services 12V standard electric marine toilet systems with a combined discharge and rinse pump for raw water (not for connection to the onboard potable water system). It is self-priming up to 0.6 m head with a maximum discharge height of 1.2 m, uses push-button operation, and includes hose connections for 20 mm ID inlet and 25.4 mm (1 in) discharge plus an adaptor to 38 mm (1-1/2 in) waste plumbing. A 25 A fuse is specified, and the compact 79 x 197 x 344 mm dimensions support straightforward installation on compatible toilet configurations.
- Description
- Ask a Question
-
Johnson Pump 81-47442-01 12V Electric Toilet Conversion Pump Kit
The Johnson Pump 81-47442-01 is a standard electric conversion kit built around a combined discharge and rinse pump assembly for raw-water toilet operation. It is intended for marine toilet conversions and replacements where a 12V electric base assembly and integrated pumping solution are required.
Application
- Includes a combined discharge and rinse pump for raw water (not designed to be connected to the onboard potable water system)
- Replacement parts for Johnson Pump AquaT standard models
- Replacement parts for allpa Space Saver electric toilets
- Can be used to convert the Manual Johnson Pump Marine Toilet
- Can be used with marine toilets using the “standard” bowl configuration with a 95.3 mm (3-3/4 in) diameter bolt circle and 4-hole pattern in the base (confirm fit against the dimensional drawing/product data sheet)
Technical Specifications
Voltage 12 V Self-Priming Up to 0.6 m head Maximum Discharge Height 1.2 m Inlet Connection 20 mm ID hose Discharge Connection 25.4 mm (1 in) hose Waste Plumbing Adaptor Adaptor included for 38 mm (1-1/2 in) Fuse Size 25 A Dimensions (H x W x L) 79 mm x 197 mm x 344 mm Shipping Weight 3.50 kg
Product Details
- Brand: Johnson Pump
- Part Number: 81-47442-01
- Article Number: 66814744201
- Product Portfolio: Electric Toilets
- Operation: Push-button switch operation
- Note: This unit runs with a characteristic noise

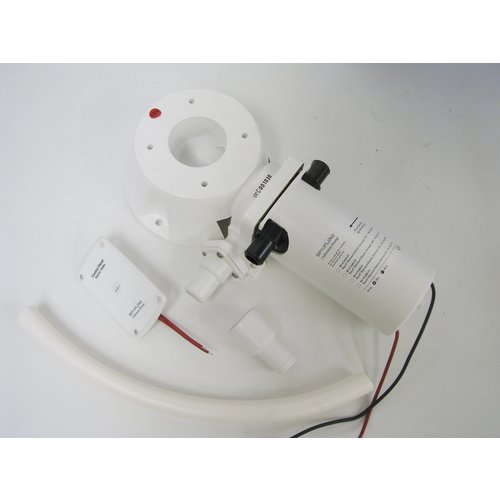

- Kit Contents (as listed): Complete motorized base assembly, bowl gasket, four bolts and washers for the bowl, 20 mm ID white hose, 1 in to 1-1/2 in discharge port adaptor, and a control switch
Features
- Combined discharge and rinse pumping for raw-water toilet systems
- Self-priming capability up to 0.6 m head for reliable start-up
- Includes waste plumbing adaptor to suit 38 mm (1-1/2 in) installations
-
