The Johnson Pump 81-47240-02 silent 24V electric conversion kit upgrades compatible marine toilets to quiet flush and discharge operation when used with a separate external flush system or an existing centralized water system (solenoid valve not included). It includes a control panel for rinse and discharge pumps, delivers water-efficient flushing at 2–2.5 L per flush, and supports flexible installation with a multi-angle outlet and 25 mm (1 in) or 38 mm (1-1/2 in) discharge hose connections. A high-capacity discharge pump handles up to 3 m (9 ft) discharge height, requires a 20A fuse, and fits compact spaces with 12.5 cm height, 22.5 cm width, and 32.1 cm length.
- Description
- Ask a Question
-
Johnson Pump 81-47240-02 24V Silent Electric Toilet Conversion System
The Johnson Pump 81-47240-02 Silent Electric Conversion Kit is designed to convert manual marine toilet installations to electric operation or to update existing electric systems to a one-button flush and discharge setup. It is intended for use with a separate external flush system with a flush pump, or with an existing centralized water system (solenoid valve not included), delivering a quiet, water-efficient flushing experience.
Application
- For use with a separate external flush system with flush pump
- For use with an existing centralized water system using a solenoid valve (not included)
- Standard electric conversion / replacement kit for Compact or Comfort bowls
Compatibility
- Manual SPX Johnson Marine Toilet (conversion application)
- Marine toilets using a “standard” bowl configuration with a 95.3 mm (3-3/4 in) diameter bolt circle and 4-hole pattern in the base
Technical Specifications
Part Number 81-47240-02 Article Number 66814724002 Voltage 24V Water Consumption 2–2.5 L per flush Discharge Height Up to 3 m (9 ft) Discharge Hose Connection 25 mm (1 in) or 38 mm (1-1/2 in) Fuse Size 20A Dimensions (H x W x L) 12.5 cm x 22.5 cm x 32.1 cm Shipping Weight 3.10 kg Product Portfolio Electric Toilets
Product Details
- Operation: Silent flush and discharge operation
- Outlet: Multi-angle outlet for various installation options
- System Note: Solenoid valve not included

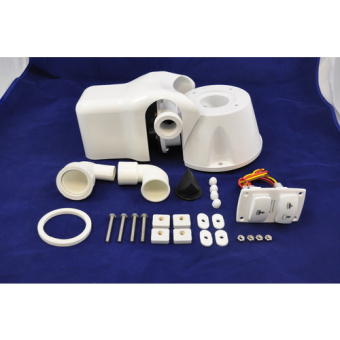

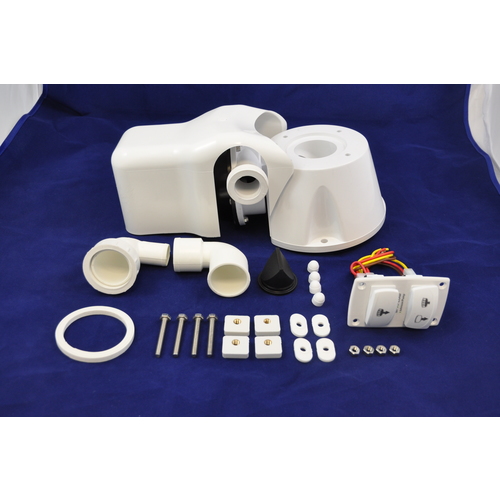

- Included Components: Complete motorized base assembly, base, 90° bend, motor, chopper, bowl gasket, four bolts and washers for bowl, 25 mm (1 in) and 38 mm (1-1/2 in) discharge port adaptor, control switch, and a control panel for the rinse and discharge pumps
Features
- Quiet, silent flush and discharge performance
- Water-efficient flushing at 2–2.5 liters per flush
- Flexible installation support with a multi-angle outlet
- High-capacity discharge pump supporting up to 3 meters (9 ft) discharge height
- Compact footprint for space-saving installations
-
