The Johnson Pump 81-47240-01 electric toilet conversion kit upgrades manual marine toilets to silent 12V flush and discharge operation, or converts existing electric systems to a one-button rinse and emptying control. It supports either a separate external flush pump setup or integration into a centralized water system using a solenoid valve (not included), while keeping water use low at 2–2.5 liters per flush. Flexible installation is supported through a multi-angle outlet, 25 mm (1 in) or 38 mm (1-1/2 in) discharge hose connections, and a high-capacity discharge pump rated for up to 3 m (9 ft) discharge height.
- Description
- Ask a Question
-
Johnson Pump 81-47240-01 12V Silent Electric Toilet Conversion System
The Johnson Pump 81-47240-01 Silent Electric Conversion Kit is built to modernize a boat toilet installation with quiet, controlled rinse and discharge operation. Designed for 12V systems, it can be configured with a separate external flush system using a flush pump, or integrated into an existing centralized water supply with a solenoid valve (not included).
Application
- Converts manual toilets to electric operation
- Converts existing electric systems to one-button flush and discharge operation
- Suitable for Compact or Comfort bowls
- Can be used to convert the Manual SPX Johnson Marine Toilet
- Also fits other marine toilets using a standard bowl configuration with a 95.3 mm (3-3/4 in) bolt circle and 4-hole base pattern
- Works with a separate external flush system using a flush pump, or a centralized water system using a solenoid valve (not included)
Technical Specifications
Voltage 12 V Water Consumption 2–2.5 L per flush Discharge Height (Max.) 3 m (9 ft) Fuse Size 25 A Discharge Hose Connection Options 25 mm (1 in) or 38 mm (1-1/2 in) Dimensions (H x W x L) 12.5 cm x 22.5 cm x 32.1 cm Shipping Weight 3.10 kg Article Number 66814724001 Product Portfolio Electric Toilets
Product Details
- Quiet operation: Silent flush and discharge function
- Control: Included control panel for rinse and discharge pump
- Outlet flexibility: Multi-angle outlet for varied installation layouts

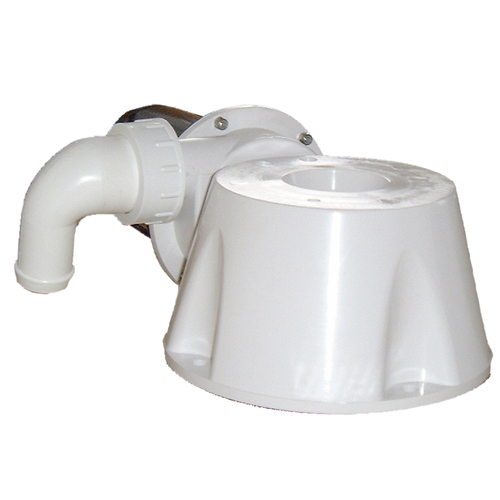

- Conversion contents: Base, 90° bend, motor, and chopper
- Included kit components: Complete motorized base assembly, bowl gasket, four bolts and washers for the bowl, 25 mm (1 in) and 38 mm (1-1/2 in) discharge port adaptor, and control switch
Features
- Silent flush and discharge operation
- Efficient water use at 2–2.5 L per flush
- High-capacity discharge pump supports up to 3 m (9 ft) discharge height
- Choice of 25 mm (1 in) or 38 mm (1-1/2 in) discharge hose connection
- Designed for compact integration with a 12.5 cm x 22.5 cm x 32.1 cm footprint
-
