ID
1332415
$ 259.45
1-2 weeks delivery time
-
+
The Johnson Pump Aqua Jet WD 3.5 deck wash diaphragm pump (10-13399-13) delivers quiet, low-pulsation washdown performance with up to 13 L/min flow and an automatic cut-off pressure of approximately 5 bar. Its five-chamber design, Santoprene and nitrile elastomers, and dry-run capable operation support dependable cleaning use on boats, vehicles, and industrial applications, while the self-priming lift up to 2.5 m and included 40 mesh strainer help protect the system. A built-in pressure switch and motor overheating protection enhance safe, convenient 12V operation.
- Description
- Ask a Question
-

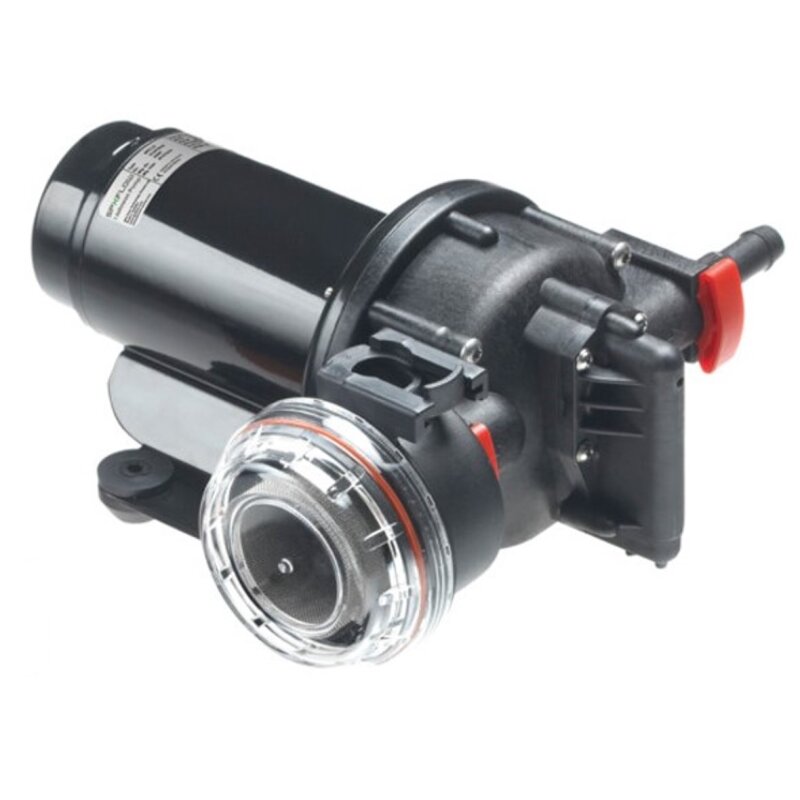

Johnson Pump 10-13399-13 Aqua Jet WD 3.5 Washdown Diaphragm Pump
The Johnson Pump Aqua Jet WD 3.5 is a quiet, low-pulsation five-chamber diaphragm deck wash pump designed to make cleaning faster and easier with pressure up to 5 bar. Built for demanding washdown duties, it combines self-priming capability, automatic pressure control, and protective filtration in one compact 12V solution.
Application
- Deck wash and cleaning device for boats
- Cleaning device for vehicles
- Industrial cleaning applications
Technical Specifications
Brand Johnson Pump Part Number 10-13399-13 Model Aqua Jet WD 3.5 Voltage 12V Output 13 L/min (3.5 GPM) Cut-Off Pressure 5 bar (70 PSI) Self-Priming Up to 2.5 m Connection 1/2" hose connection Current Draw 11.5 A Recommended Fuse 15 A (not included) Dimensions (H x W x L) 11.6 cm x 13.1 cm x 23.6 cm (width without connections) Shipping Weight 2.50 kg Product Portfolio Water Pressure Systems; Washdown Pumps
Product Details
- Pump type: Five-chamber diaphragm pump
- Elastomers: Santoprene and nitrile
- Automatic control: Integrated pressure switch turns the pump off at approximately 5 bar and restarts automatically when pressure drops
- Protection: Motor with built-in overheating protection switch
- Filtration included: 40 mesh strainer
- Operating capability: Dry running without damage
Features
- Quiet, low-pulsation operation
- Higher pressure up to 5 bar for faster cleaning
- Self-priming up to 2.5 m
- Pressure switch shut-off at approximately 5 bar (70 PSI)
- Integrated valves help maintain pressure after shut-off
- Includes 40 mesh strainer
-
