ID
1330886
$ 3,461.87
1-2 weeks delivery time
-
+
The Johnson Pump 10-13121-01 F95B-3000 flexible impeller pump delivers extra heavy-duty, self-priming performance for demanding marine duties including engine cooling water, bilge pumping, and deck wash. Its bronze construction, separate bearing housing, stainless steel shaft with permanently lubricated double ball bearings, and mechanical seal help reduce wear for long service life in raw water. Pedestal and foot mounting options, 2-1/2 in BSP internal threaded ports, and a Neoprene impeller (09-820B) support reliable transfer and circulation tasks onboard and onshore.
- Description
- Ask a Question
-

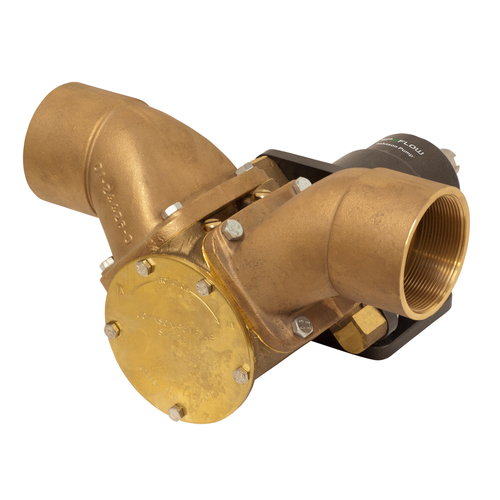

Johnson Pump 10-13121-01 F95B-3000 Pedestal-Mounted Flexible Impeller Unit
Built for extra heavy-duty service, this Johnson Pump F95B-3000 flexible impeller pump combines a bronze pump body with a separate bearing housing and a mechanical seal to support extended wear resistance and long operational life. The design is self-priming and raw water resistant, making it a proven choice for high-demand marine pumping where durability and consistent suction performance matter.
Application
- Marine engine cooling
- Cooling water pump
- Bilge pump
- Deck wash and wash-down
- Emergency and fire-fighting pump
- Freshwater pumping
- Fuel transfer
- Emptying holding tanks (use a different impeller if necessary)
- Liquid circulation and transfer
- Emptying tanks and sump drainage
- Handling of solids in suspension (use a different impeller if necessary)
- Emptying septic tanks
- Flushing, cleaning, and filling water tanks
Technical Specifications
Brand Johnson Pump Part Number 10-13121-01 Article Number 66101312101 Model F95B-3000 EAN 8719182063049 Pump Housing Material Bronze Shaft Material Stainless Steel Seal Type Mechanical Seal Bearings Two Permanently Lubricated Double Ball Bearings Impeller 09-820B (Also Listed as Art. 6609820B) Included Impeller Material Neoprene Cam Version 1/1 Connection 2-1/2 in BSP (Internal Threaded Ports) Drive Shaft Diameter 24 mm Drive Details 24 mm Shaft End with 8 mm Key Impeller Hub Spline Drive Drive/Shaft End Ribbed Segment Key Dimensions (L x W x H) 354 x 295 x 201 mm Dimensions (Alternative Listing) Length 354 mm; Width 246/295 mm; Height 201/226 mm Weight 17.2 kg Shipping Weight 20.20 kg Flow Rate 626.7 L/min at 50 kPa and 2500 rpm Capacity (Also Listed) 627 L/min Flow Rate (Also Listed) Max. 535 L/min at 2000 rpm Mounting Type Pedestal Mounted; Foot Mounting; Base Mount Product Portfolio Impeller Pumps; Cooling Water Pumps
Product Details
- Extra heavy-duty bronze pump with separate bearing housing and mechanical seal for reduced wear and longer life
- Self-priming flexible impeller design for dependable suction and transfer performance
- Raw water resistant construction suited to demanding marine environments
- Pump housing includes a connection for a vacuum switch (vacuum switch optionally available)
- Includes a mechanical seal and a stainless steel cover
Features
- Compact, heavy-duty construction for reliable onboard operation
- Designed for multi-purpose marine use, including cooling water, bilge, and deck wash duties
- Suitable for onshore transfer tasks such as tank emptying and septic tank emptying
-
