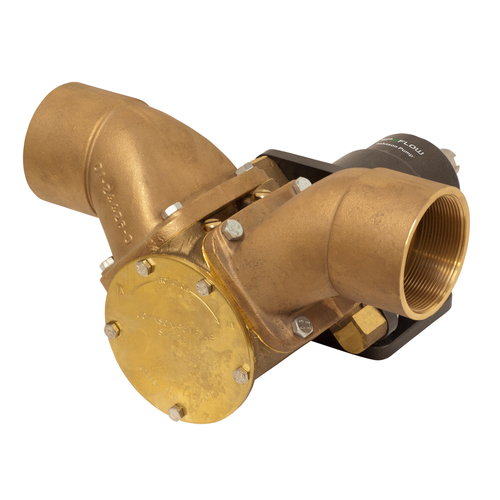

Johnson Pump 10-13121-01 - Impeller Pump F95B-3000 Pedestal Mounted, 2-1/2" BSP, 1/1, NEO

Johnson Pump 10-13121-01 - Impeller Pump F95B-3000 Pedestal Mounted, 2-1/2" BSP, 1/1, NEO

Elevate your pumping capabilities with the Johnson Pump 10-13121-01 Impeller Pump F95B-3000, designed for extra heavy-duty applications with a separate bearing housing and mechanical seal for extended wear resistance and longer life. This versatile pump covers a wide range of marine applications, serving as cooling water pumps, bilge pumps, deckwash pumps, and emergency or fire-fighting pumps. The extra heavy-duty range of multi-purpose bronze pumps, like this F95B-3000 model, is raw water resistant and boasts a compact design, ensuring reliability and quality in various marine scenarios.

With excellent self-priming capability, this pump is ideal for applications such as marine engine cooling, bilge pumping, deck washing, freshwater pumping, fuel transfer, and more. It's also suitable for on-shore use, including emptying septic tanks and flushing, cleaning, and filling water tanks. The pump's specifications include a bronze pump body, a stainless steel shaft with permanently lubricated double ball bearings, and a mechanical seal for optimal performance. The impeller, coded as 09-820B, ensures efficient fluid movement, and the pump features a 2.5" BSP connection. The dimensions are as follows: Length 354mm, Width 246/295mm, and Height 201/226mm, with a weight of 17.2kg. The drive shaft diameter is 24mm, and the flow rate is 626.7LPM at 50KPA and 2500RPM.

Technical Data:

• Pump Housing: Bronze
• Shaft: Stainless steel
• Seal: Mechanical seal
• Impeller: 09-820B
• Connection: 2.5" BSP
• Length: 354mm
• Width: 246/295mm
• Height: 201/226mm
• Weight: 17.2kg
• Driveshaft: 24mm
• Flow Rate: 626.7LPM @50KPA and 2500RPM

Dimensions:

• Length: 354mm - 13.93'
• Width: 246/295mm - 9.68'/11.61'
• Height: 226/201mm - 8.89'/7.91'
