ID
1330885
$ 1,218.47
1-2 weeks delivery time
-
+
The Johnson Pump 10-13021-1 bronze impeller pump (F8B-8) is a compact, self-priming, seawater-resistant unit for versatile shipboard use, including engine cooling water, bilge pumping, deck cleaning, fresh water transfer, refueling, and tank emptying/flushing/refilling. Its bronze housing, stainless steel shaft with permanently lubricated double ball bearings, and mechanical seal support dependable operation, while the 1-1/2 in BSP threaded connections and space-saving 217 x 160 x 65 mm dimensions make installation practical. The pump is supplied with a neoprene impeller, with a nitrile impeller available on request.
- Description
- Ask a Question
-

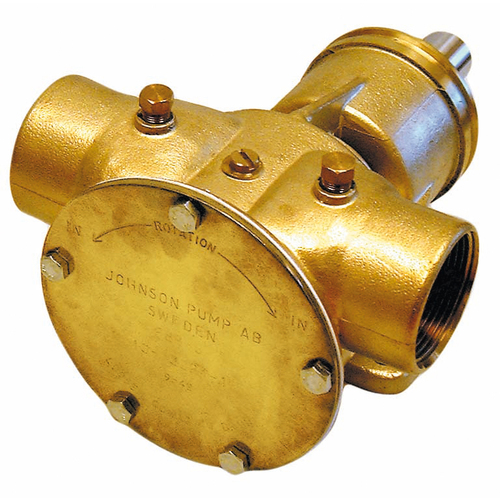

Johnson Pump 10-13021-1 F8B-8 Self-Priming Bronze Impeller Unit
The Johnson Pump 10-13021-1 (model F8B-8) is a compact, seawater-resistant bronze impeller pump built for demanding shipboard duties. Its self-priming design supports flexible installation and makes it suitable for a wide range of onboard water handling tasks.
Application
- Cooling water pump for ship engines
- Bilge pump
- Deck cleaning pump
- Fresh water pump
- Refueling pump
- Emptying holding tanks
- Flushing and refilling water tanks
Compatibility
- Albin Motor G62 engines
- Albin Motor G62T engines
- Caterpillar 3208 engines
- Alternative to OEM 1829512
Technical Specifications
Brand Johnson Pump Part Number 10-13021-1 Model F8B-8 Capacity 279 l/min Connection Type BSP or NPT Connection Size 1-1/2 in BSP threaded ports (38 mm) Housing Material Bronze Shaft Material Stainless steel Bearings Permanently lubricated double ball bearings Seal Type Mechanical seal Cam Full or partial comb; 1/1 cam Mounting Type Foot mounting; base mounting Drive Pulley drive; key drive Drive Shaft Diameter 24 mm Shaft Diameter (Listed) 27.3 mm Key Size (Listed) 8.1 mm Drive Shaft Fit (Listed) 24h8 mm Impeller Hub Spline drive Dimensions (L x H x W) 217 x 160 x 65 mm Weight 5.9 kg (13 lbs) Shipping Weight 7.50 kg EAN 8719182065869 Article Number (Listed) 6610130211
Product Details
- Pump type: Bronze impeller pump (cooling water pump / multi-purpose ship pump)
- Seawater resistance: Seawater-compatible, compact design
- Cover: Stainless steel cover (listed)
Features
- Self-priming operation for flexible onboard use
- Durable bronze housing for marine service
- Mechanical seal for reliable performance
- Stainless steel shaft with permanently lubricated double ball bearings
Impeller and Service Items (Listed)
- Impeller: 09-819B-1
- Optional nitrile impeller (on request): 09-819B-9
- Impeller references (listed): 6609819B; 6609819B9 (nitrile)
- Service kit (listed): 09-45575
- Impeller kit (listed): 09-819B
- Included impeller (listed): Neoprene impeller
-
