The Johnson Pump 09-24653-01 inlet strainer unit protects pumps and systems by preventing dirt and particles from entering the flow line. A transparent lid and KlickTite Port connections support fast inspection, secure assembly, and straightforward maintenance, while the complete unit can be removed for thorough cleaning. The 40 mesh stainless-steel strainer is recommended for pressure water pumps, and the compact 80 mm diameter/height design keeps installation lightweight at 0.15 kg with seawater-ready materials including polyamide 66, transparent acrylic, and silicone/EPDM O-rings.
- Description
- Ask a Question
-

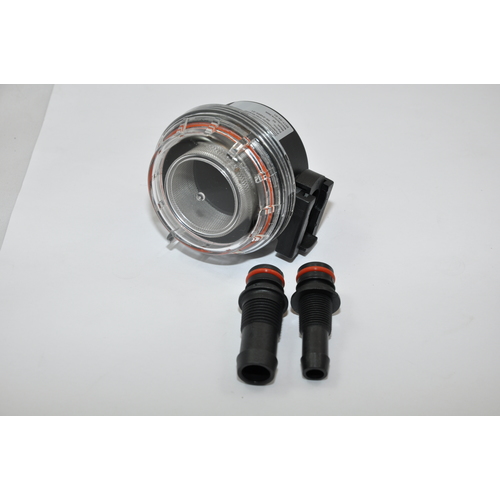

Johnson Pump 09-24653-01 KlickTite Inlet Filtration Unit
The Johnson Pump 09-24653-01 inlet strainer is designed to stop debris and other particles before they reach your pump or connected system. Its transparent housing supports quick visual checks, and the KlickTite connection concept simplifies assembly and routine service. The design also allows the full unit to be removed for convenient, thorough cleaning.
Application
- Inlet filtration to prevent dirt and particles entering a pump or system
- Recommended 40 mesh strainer for pressure water pumps
- Maximum temperature for drinking water: +30 C
Compatibility
- WPS Pump Uno
- WPS Pump Duo
- WD Pump 2.9
- WD Pump 3.5
- WD Pump 5.2
- Flow Master 5.0
Technical Specifications
Brand Johnson Pump Part Number 09-24653-01 Article Number 66092465301 EAN 8719182046127 Strainer Mesh 40 Diameter 80 mm / 3.15" Height 80 mm / 3.15" Product Weight 0.15 kg / 0.33 lbs Shipping Weight 0.40 kg Configuration 90
Product Details
- Housing: Transparent, screw-off style for easy inspection and cleaning
- Filtration element: Stainless steel strainer
- Purpose: Protects pumps and pump systems from debris and particles
- Serviceability: Entire unit can be removed for thorough cleaning
Materials
- Filter body: Polyamide 66, black
- Lid: Transparent acrylic
- Strainer: Stainless steel (mesh strainer)
- O-rings: Silicone and EPDM
Connections
- KlickTite interface: KlickTite snap-in port (female) inlet x KlickTite snap-in plug (male) outlet
- Included connector option: 13 mm (1/2") hose barb or 3/8" BSP
- Included connector option: 19 mm (3/4") hose barb or 1/2" BSP
- Connection options list:
- 1 x 1/2" hose - 3/8" BSP (NPT)
- 1 x 3/4" hose - 1/2" BSP (NPT)
-
