Johnson Pump 09-36572-02 - Accumulator Tank for Pumped Water Systems

ID 1332308

$ 143.48

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump 09-36572-02 accumulator tank is a 2 litre pressure tank designed to smooth water flow and reduce pump on/off cycling in pumped water systems controlled by a pressure switch up to 12 bar (174 PSI). By reducing pressure and flow variation between the pump and outlets, it helps cut noise and battery drain while improving pump service life. It mounts in any position and includes a mounting retainer, with 19 mm (3/4") hose barbs and a 3/4" thread connection on the T-piece for flexible installation.

Description
Ask a Question

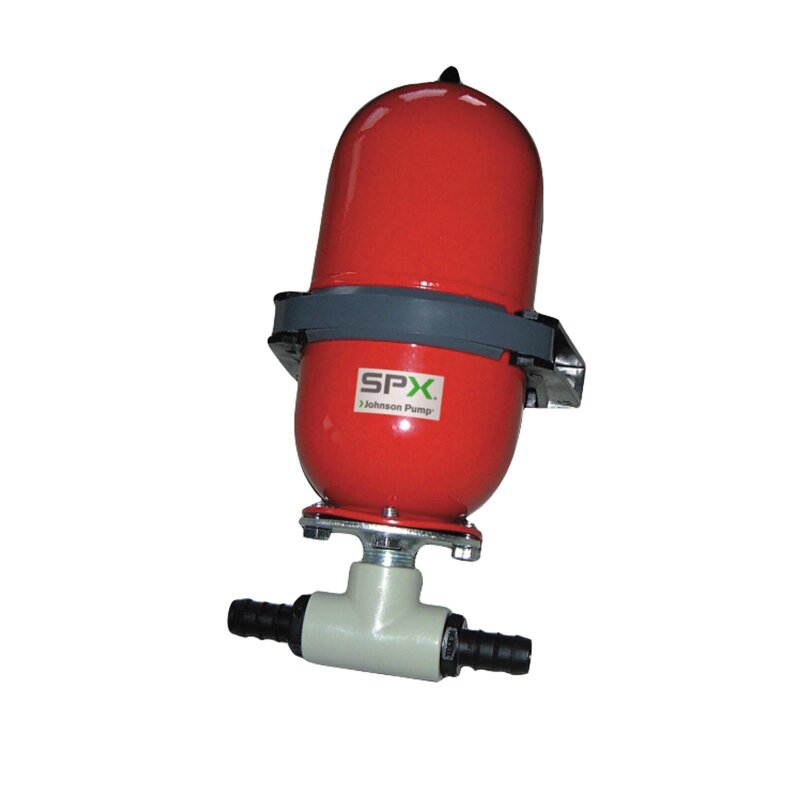

Johnson Pump 09-36572-02 Water System Accumulator Tank

The Johnson Pump 09-36572-02 accumulator tank is built to support safe, reliable operation in pumped water systems by stabilizing pressure and flow. Adding an accumulator tank increases rest intervals when only small amounts of water are drawn, helping reduce pump wear caused by frequent starts and stops.

Application

For installation in pumped water systems controlled by a pressure switch
Maximum operating pressure: 12 bar (174 PSI)

Compatibility

Replaces Johnson Pump Marine 09-46839-02

Technical Specifications

Brand	Johnson Pump
Part Number	09-36572-02
Capacity	2 litre
Operating Pressure (Max)	12 bar (174 PSI)
Connections	1/2" or 3/4" hose
Hose Connection	19 mm (3/4") hose connection
Additional Connection Option	3/4" thread on the T-piece
Height	315 mm
Diameter	160 mm
Dimensions	31.5 cm x 16.0 cm
Weight	1.2 kg
Shipping Weight	1.70 kg

Product Details

Type: Accumulator tank
Mounting: Mounts in any position
Included: Mounting retainer

Features

Smooths water flow by reducing pressure and flow variation between the pump and system outlets
Reduces pump on/off cycling to help lower wear from frequent starts and stops
Helps reduce noise and battery drain while improving pump life
