ID
1265061
$ 159.59
1-2 weeks delivery time
-
+
The Johnson Pump 03-24725-9 Ultima bilge pumping unit with float switch delivers mid-range dewatering performance with an 800 GPH flow rating while operating on 12V at 3A. A 3/4 inch hose connection supports flexible installation, and the specified 5A fuse rating helps protect the electrical circuit. With a compact 142 x 82 x 105 mm footprint and 0.66 kg weight, it provides practical capacity options including 51 L/min straight and 38 L/min at 1 m head (both at 13.6V).
- Description
- Ask a Question
-

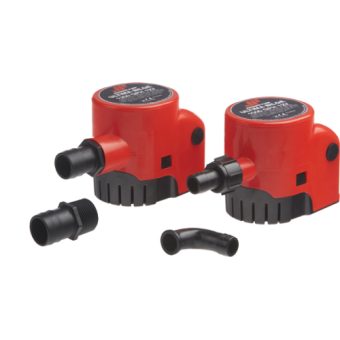

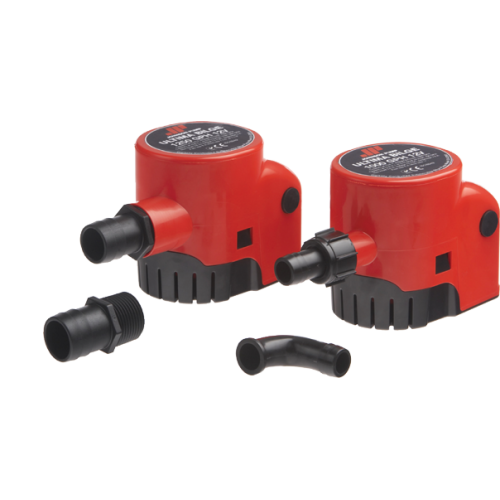

Johnson Pump 03-24725-9 Ultima Bilge Pump Unit With Float Switch
The Johnson Pump 03-24725-9 is an Ultima bilge pump designed to provide dependable bilge water removal with a balanced combination of flow performance and installation flexibility. It includes a float switch and is built for 12V onboard electrical systems.
Application
- Bilge pumping for marine installations
Compatibility
- 3/4 inch hose connection
Technical Specifications
Part Number 03-24725-9 Article Number 663247259 EAN 8719182074328 Model 800GPH Rated Voltage 12V Current 3A Fuse 5A Capacity Straight (13.6V) 51 L/min Capacity at 1 m Head (13.6V) 38 L/min Hose Connection 3/4 inch Dimensions 142 x 82 x 105 mm Weight 0.66 kg
Product Details
- Type: Ultima bilge pump with float switch
- Flow Rating: 800 GPH capacity
- Power: 12V operation with 3A current draw
-
