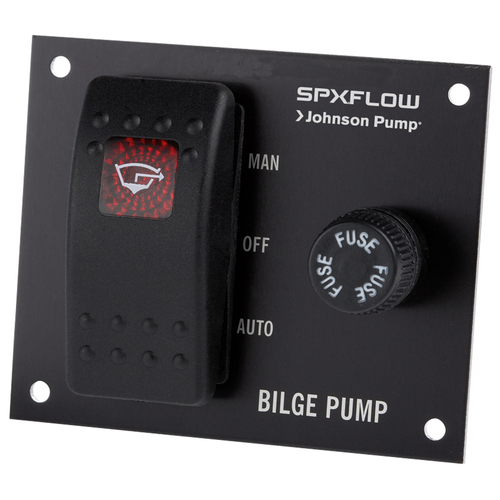

Johnson Pump 34-1224 - 12V Bilge Pump Control Panel With 3 Position Switch

ID 1331004

$ 70.01

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump 34-1224 bilge pump control panel gives full control of a 12V bilge pumping setup with three switch positions (On, Auto, Off) for manual or automatic operation. It works with the AS888 automatic switch or an electronic float switch, and adds practicality through an integrated fuse holder and built-in lighting. A matte black finish, included fuses, and a compact mounting depth of 40 mm make it a clean, space-conscious control solution for bilge pump circuits.

Description
Ask a Question

Johnson Pump 34-1224 12V Bilge Pump Control Switch Panel

The Johnson Pump 34-1224 is a switch panel for controlling bilge pump operation from a dedicated control point. It supports both manual and automatic bilge pumping, combining a three-position selector with integrated protection and illumination in a matte black panel design.

Application

Manual bilge pump control (On)
Automatic bilge pumping control (Auto) in conjunction with an automatic switch
Bilge pump shutoff (Off)

Compatibility

AS888 automatic switch
Electronic float switch
Automatic bilge switches

Technical Specifications

Brand	Johnson Pump
Part Number	34-1224
Article Number	66341224
EAN	8719182076124
Voltage	12V
Switch Positions	3 Positions (On, Auto, Off)
Mounting Depth	40 mm
Dimensions (As Stated)	73 mm x 60 mm; 76 mm x 55 mm
Fuse Size	6.3 x 32
Shipping Weight	0.20 kg

Product Details

Control type: Switch panel for bilge pump control
Automatic circuit: Operates in combination with the AS888 automatic switch or an electronic float switch
Finish: Matte black

Features

Three-position control for clear On, Auto, and Off selection
Built-in fuse holder for integrated circuit protection
Internal light (lighting) for easier operation
Fuses included
