The Johnson Pump 01-47765-1 end cover kit is built for F4B and F5B pump applications, providing a precise fit with an approximate 76.2 mm diameter and a 4-hole mounting pattern. It replaces 01-45312-1 and is often used together with gasket Johnson Pump 01-45315, making it a practical service option for maintaining pump sealing and assembly integrity.
- Description
- Ask a Question
-

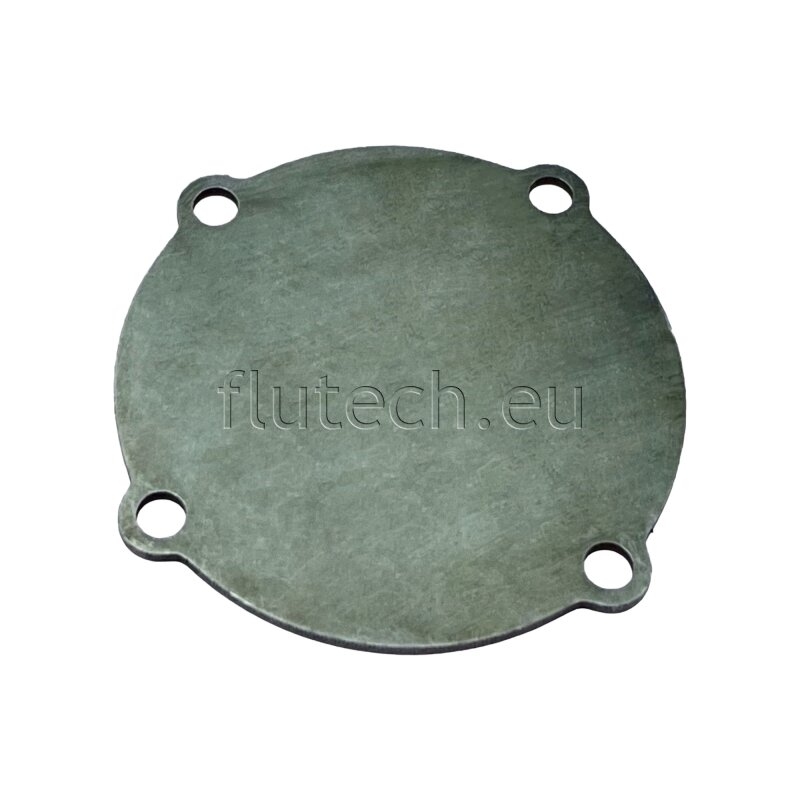

Johnson Pump 01-47765-1 End Cover Service Kit
The Johnson Pump 01-47765-1 is an end cover kit intended for Johnson Pump F4B and F5B pump setups. It is supplied as a replacement option for maintaining the end cover interface and is commonly paired with a matching gasket for service work.
Compatibility
- F4B pumps
- F5B pumps
Technical Specifications
Brand Johnson Pump Part Number 01-47765-1 Diameter Approx. 76.2 mm Thickness Approx. 3.1 mm Hole Pattern Diameter (Center to Center) Approx. 71.2 mm Number of Holes 4 Shipping Weight 0.30 kg
Product Details
- Type: End cover kit
- Replaces: 01-45312-1
- Often Used With: Gasket Johnson Pump 01-45315
- Alternative To: Johnson Pump Marine 01-45312-1
Features
- End cover kit designed for F4B and F5B pump applications
- 4-hole mounting with an approximate 71.2 mm center-to-center hole pattern diameter
- Service-friendly replacement option for 01-45312-1
-
