$ 64.36
1-2 weeks delivery time
-
+
The Johnson Pump 01-47771-1 stainless steel cover is built for F9B and F95B applications, providing a precise fit with an approximate 118 mm diameter and 4 mm thickness. It uses an asymmetrical 5-hole pattern with a 104.6 mm bolt circle diameter and 7 mm hole width, and it can be used as an alternative to Johnson Pump Marine 01-42422-1.
- Description
- Ask a Question
-

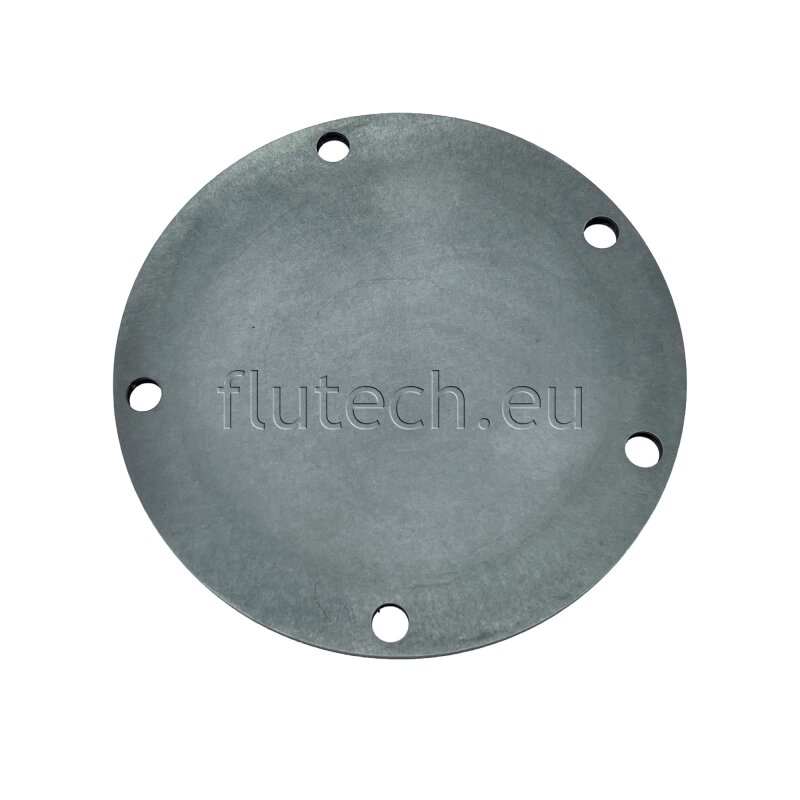

Stainless Steel Cover Plate Johnson Pump 01-47771-1 for F9B and F95B
The Johnson Pump 01-47771-1 cover is a stainless steel component designed for F9B and F95B applications. Its defined dimensions and hole pattern support straightforward replacement where the correct fit and corrosion-resistant material are required.
Application
- F9B
- F95B
Compatibility
- Alternative to Johnson Pump Marine 01-42422-1
Technical Specifications
Brand Johnson Pump Part Number 01-47771-1 Material Stainless steel Diameter Approx. 118 mm Thickness Approx. 4 mm Bolt Circle Diameter (Hole Center to Hole Center) Approx. 104.6 mm Hole Pattern 5 holes (asymmetrical) Hole Width 7 mm Shipping Weight 0.40 kg
Product Details
- Component type: Cover
- Designed for: F9B and F95B applications
- Replacement reference: Alternative to Johnson Pump Marine 01-42422-1
-
