The Flojet 01740003 fresh water pump inlet strainer is an inline filter for 9.5 mm (3/8 inch) ID hose connections, designed to protect pumps from debris. It uses a 40-mesh stainless steel screen in a transparent housing with a screw-off top for quick inspection and cleaning. Specifications listed include a maximum pressure of 5 bar (70–72.5 PSI), maximum operating temperature up to 70°C (158°F), and a maximum flow rate stated as 16 L/min (4.2 GPM) and also 8 L/min (2 GPM) for the inline version; housing materials are stated as polypropylene base with a polysulfone cover, stainless steel strainer, and a Buna-N cover O-ring.
- Description
- Ask a Question
-
Flojet 01740003 Inline Pump Inlet Strainer for Fresh Water Systems

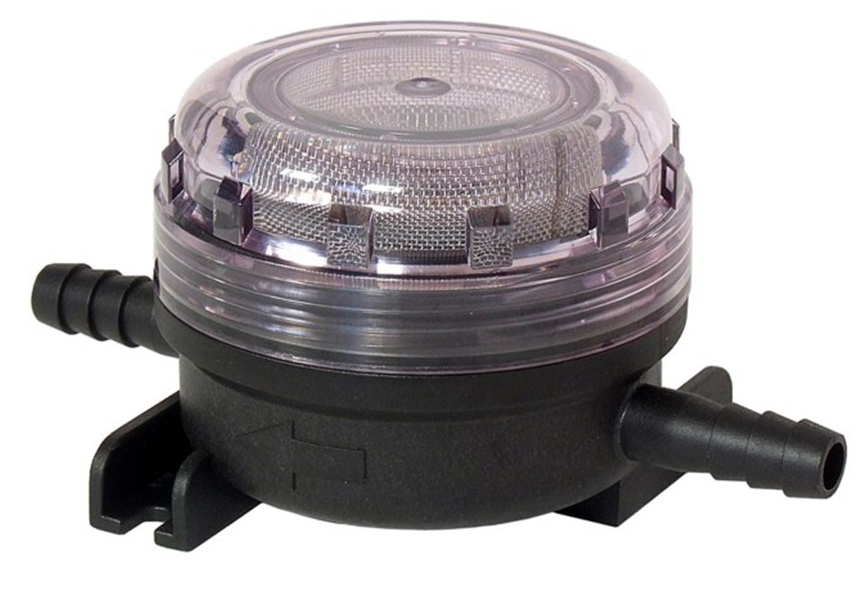

The Flojet 01740003 is an inline inlet strainer designed to protect fresh water pumps by filtering debris and particles before they reach the pump. It features a transparent, screw-off housing for fast visual inspection and easy cleaning.
Technical Specifications
Model 01740003 Hose Connection (Inlet) 9.5 mm (3/8 inch) ID hose connection (also listed as 10 mm (3/8 inch)) Hose Connection (Outlet) 9.5 mm (3/8 inch) ID hose connection (also listed as 10 mm (3/8 inch)) Filter Screen 40 mesh stainless steel Screen Rating Detail 40 meshes per square inch (approx. 0.4 mm openings) Maximum Pressure 5 bar (70 PSI) / maximum 5 bar (72.5 PSI) listed Maximum Temperature Up to 70�C (158�F) Maximum Flow Rate 16 L/min (4.2 GPM) listed; also stated 8 L/min (2 GPM) for inline version Material (Housing) Polypropylene housing (base); polysulfone cover Material (Strainer) Stainless steel Seal Material Buna-N cover O-ring Dimensions Length 120 mm, width 70 mm, height 60 mm (also listed approx. 121 x 70 x 57 mm) Weight 0.10 kg (approx. 0.30 kg when packed); shipping weight listed as 0.15 kg Packaged Dimensions 19.00 cm (L) x 15.00 cm (W) x 14.00 cm (H) Alternative Reference Alternative to Jabsco 46400-0003
Features
- 40-mesh stainless steel screen to help prevent clogging and pump damage
- Transparent housing for quick visual inspection of debris levels
- Screw-off top for fast cleaning and debris removal
- Inline design for use with 9.5 mm (3/8 inch) ID hoses
- Corrosion-resistant materials for use in fresh water systems
Compatibility
- Fresh water pump installations in residential applications
- Fresh water pump installations in commercial applications
- Fresh water pump installations in light industrial applications
- Compatible with Flojet and similar pump systems requiring debris protection
- Listed for potable water and salt water applications
Product Details
- Designed to help prevent particles from jamming valves and causing pump breakdowns
- Supports quick maintenance through an inspection-friendly, cleanable housing
-
