The Flojet 02090104 pressure switch is a direct-mount switch set to 35 PSI (2.4 bar) for maintaining consistent pressure in fluid systems. It is specified as an SPST on/off switch with a maximum electrical rating of 12V DC, 10A, and a contact rating of 10A at 12V DC and 3A at 120V AC. Listed details include IP65 ingress protection, an operating temperature range of -10°C to 60°C, approximate dimensions of 50x40x30mm, and a weight of 0.06 kg (approx. 0.26 kg packed).
- Description
- Ask a Question
-

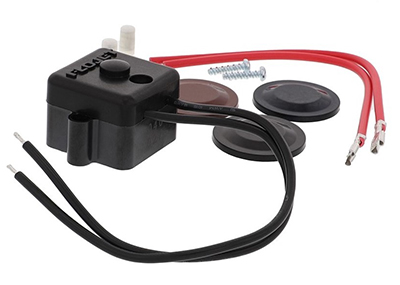

Flojet 02090104 Direct-Mount 35 PSI Pressure Switch
The Flojet 02090104 is a direct-mount pressure switch designed to regulate and maintain consistent system pressure in fluid handling applications. Set to 35 PSI (2.4 bar), it supports stable pump operation and pressure control in systems such as water pumps and filtration installations.
Technical Specifications
Model 02090104 Pressure Setting 35 PSI (2.4 bar) Pressure Tolerance +/- 2 PSI Mounting Type Direct mount Switch Type SPST (Single Pole Single Throw) Electrical Rating 12V DC, 10A max Contact Rating 10A at 12V DC; 3A at 120V AC Operating Temperature Range -10°C to 60°C Ingress Protection IP65 Material Corrosion-resistant plastic and metal components Dimensions (Approx.) 50 x 40 x 30 mm Weight 0.06 kg (approx. 0.26 kg packed) Shipping Weight 0.10 kg Alternate To Flojet 02096-535 Flow Rate Compatibility Up to 10 GPM Certification CE and UL
Product Details
- Pressure setpoint: 35 PSI (2.4 bar) for regulated on/off pressure control
- Direct-mount format: designed for quick, secure installation on compatible systems
- Sealed protection: IP65-rated for dust and water resistance
Compatibility
- Designed for use with Flojet pumps and compatible fluid handling systems requiring pressure regulation
-
