The Flojet R3B21504F Triplex Diaphragm Pump is a 12V DC three-chamber pump delivering 11 LPM, with bypass and no pressure switch, suction up to 3.0 m, fluid temperatures +4°C to +60°C, polypropylene housing, Santoprene diaphragm, EPDM or Viton valves, quick-release couplings for 12 mm or 19 mm hose, suited for sprinkling rollers and sweeping brushes.
- Description
- Ask a Question
-

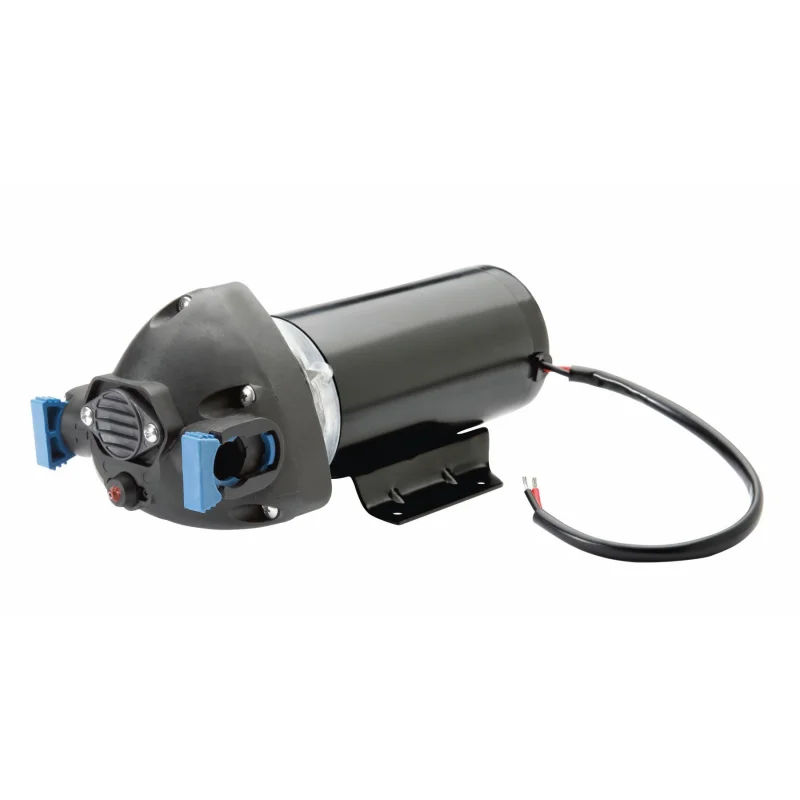

Flojet R3B21504F - Diaphragm Pump 12 Volt DC
The Flojet R3B21504F is a 12 Volt DC three-chamber diaphragm pump with a maximum flow of 11 l/min. Designed for quiet operation, it has a bypass and operates without a pressure switch. Suction height reaches up to 3.0 m, and it handles temperatures from +4°C to +60°C. The pump housing is polypropylene, the diaphragm is Santoprene®, and valves are EPDM or Viton®. A filter with mesh insert is recommended for liquids with dirt particles. Approved for water, the pump includes quick-release couplings for 12 mm or 19 mm hose connections and is ideal for sprinkling rollers and sweeping brushes in industrial applications.
Technical Data
Max Flow 11 l/min Voltage 12 Volt DC Current 8.0 Amps Diaphragm Santoprene® Valves EPDM or Viton® Housing Polypropylene Suction Height Up to 3.0 m Temperature Range +4°C to +60°C Pressure Switch None, with Bypass Connectors Quick-release 12 mm or 19 mm
Applications
Ideal for sprinkling rollers and sweeping brushes. Use a filter for liquids containing dirt particles to prevent clogging. Water approved only.
Brand: Flojet
Article: R3B21504F -
