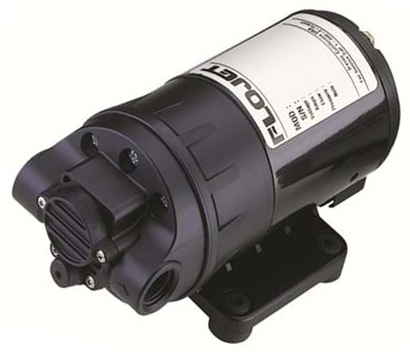

The Flojet D3631E1311 diaphragm pump is a Flojet Duplex II series unit with a polypropylene body, EPDM diaphragm, and EPDM check valve, driven by a 115V AC motor (50/60 Hz). It uses a medium pressure cam and has no switch, with an external 50 PSI pressure bypass that continues running until power is manually turned off. Ports are 3/8 inch NPT female inlet and 3/8 inch NPT female discharge; the pump is self-priming up to 8 ft (2.4 m), can run dry without damage, has a maximum liquid temperature of 140°F, and weighs 5 lb.
- Description
- Ask a Question
-
Flojet Duplex II 115V AC Diaphragm Pump With 50 PSI Bypass
The Flojet D3631E1311 is a Duplex II series diaphragm pump intended for intermittent-duty industrial use such as liquid transfer, spraying, cooling, circulation, filtration, and dispensing. It is built with a polypropylene pump body and EPDM wet-end components, and it uses an external bypass system to bypass flow internally when pressure exceeds the bypass setting.
Technical Specifications
Series Duplex II Pump Type Diaphragm Pump Body Material Polypropylene Diaphragm Material EPDM Check Valve Material EPDM Cam Medium Pressure Cam Switch No Switch Pressure Bypass 50 PSI Motor Voltage 115V AC Motor Frequency 50/60 Hz Inlet Port 3/8 inch NPT Female Discharge Port 3/8 inch NPT Female Self-Priming Up to 8 ft (2.4 m) Run Dry Capability Can run dry without damage Maximum Fluid Temperature 140�F Weight 5 lb Maximum Inlet Pressure 30 PSI (2.1 bar) Recommended Minimum Strainer 40 mesh (in inlet line) Minimum Tubing ID 3/8 inch Minimum Tubing Length 20 inches Maximum Check Valve Cracking Pressure (If Used) 2 PSI (0.14 bar) Pump Head Orientation May be rotated in 90 degree increments
Features
- External bypass system that bypasses flow internally when pressure is over 50 PSI
- Self-priming up to 8 ft (2.4 m)
- Run-dry capable without damage
- Designed to pump at high pressures at low or high flow rates and will continue to run until power is manually turned off
- Head can be rotated in 90 degree increments to simplify plumbing
Product Details
- Intended for intermittent duty cycles; not recommended for continuous duty service due to limited motor brush life
- Mount the pump in a dry, adequately ventilated area; if installed outdoors, shield from water, dust, sunlight, and wash-down spray
- Do not use to pump flammable fluids (including gasoline, kerosene, fuel oil) and do not use in an explosive environment
- To start and prime, keep the discharge line open to allow trapped air to escape and reduce the risk of airlock
- Sealers and tape can contribute to cracked housings or stripped threads if over-tightened; debris-related failures are not covered under warranty
Compatibility
- Available service part: Catalog # 20914-003A, Check Valve Assembly Kit (Duplex II Series Pumps, 115 VAC)
-
