The Flojet Duplex II series diaphragm pump assembly uses a 24 Volt DC motor with a 50 PSI pressure bypass and no switch for manual on/off control. It features a polypropylene pump body, EPDM diaphragm, Santoprene check valve, and a medium pressure cam, with 3/8 inch NPT female inlet and discharge ports. The pump is self-priming up to 8 ft (2.4 m), can run dry without damage, has a maximum fluid temperature of 140°F, and weighs 5 lbs.
- Description
- Ask a Question
-

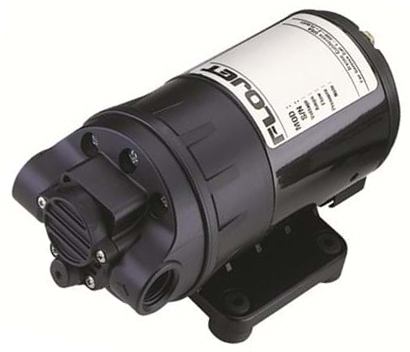

Flojet Duplex II 24V DC Diaphragm Pump With Bypass
The Flojet D3231H1311AR is a Duplex II series diaphragm pump built for general industrial liquid handling tasks such as transfer, spraying, cooling, circulation, filtration, and dispensing. It uses an external bypass system to bypass flow internally when pressure exceeds the bypass setting, and it is designed to run until power is manually switched off.
Technical Specifications
Series Duplex II Pump Type Diaphragm Pump Motor Voltage 24 Volt DC Switch No Switch Pressure Bypass 50 PSI Body Material Polypropylene Diaphragm Material EPDM Check Valve Material Santoprene Cam Medium Pressure Cam Inlet Port 3/8 inch NPT Female Discharge Port 3/8 inch NPT Female Self-Priming Up to 8 ft (2.4 m) Run Dry Capability Can run dry without damage Maximum Fluid Temperature 140°F Maximum Inlet Pressure 30 PSI (2.1 bar) Weight 5 lbs Motor Type Permanent Magnet Electrical Solid state rectifier; full RFI suppression
Features
- External bypass that bypasses flow internally when pressure is over 50 PSI
- Manual operation (no switch); continues to run until power is turned off
- Self-priming up to 8 ft (2.4 m)
- Dry-run tolerant (can run dry without damage)
- Pump head can be rotated in 90 degree increments to simplify plumbing
Product Details
- Intended for intermittent duty cycles and can be run continuously for short periods; not recommended for continuous duty service due to limited motor brush life.
- Mount in a dry, adequately ventilated area; if used outdoors, shield from water, dust, sunlight, and washdown spray.
- Do not use to pump flammable fluids (including gasoline, kerosene, and fuel oil) and do not use in an explosive environment.
-
