The Flojet D31X015F Duplex II diaphragm pump is a 12V DC unit with a nylon body, a Buna diaphragm, and a Buna check valve, equipped with a 50 PSI pressure bypass. It has 3/8 inch NPT female inlet and discharge ports, is self-priming up to 8 ft (2.4 m), and can run dry without damage. Maximum temperature is 140°F, maximum inlet pressure is 30 PSI (2.1 bar), and pump weight is 5 lb; it is intended for intermittent duty cycles and is not recommended for continuous duty service.
- Description
- Ask a Question
-

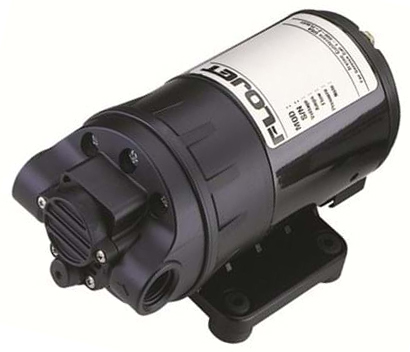

Duplex II 12V DC Diaphragm Pump With 50 PSI Bypass
The Flojet D31X015F is a Duplex II series diaphragm pump built for general liquid handling tasks such as transfer, spraying, cooling, circulation, filtration, and dispensing. It uses an external bypass system to bypass flow internally when pressure exceeds 50 PSI and is designed to continue running until power is manually switched off.
Technical Specifications
Series Duplex II Motor Voltage 12V DC Body Material Nylon Diaphragm Material Buna Check Valve Material Buna Pressure Bypass 50 PSI Inlet Port 3/8 inch NPT female Discharge Port 3/8 inch NPT female Self-Priming Up to 8 ft (2.4 m) Maximum Fluid Temperature 140°F Maximum Inlet Pressure 30 PSI (2.1 bar) Weight 5 lb
Features
- Self-priming design (up to 8 ft / 2.4 m)
- Can run dry without damage
- External bypass that bypasses flow internally when pressure is over 50 PSI
- Pump head can be rotated in 90-degree increments to simplify plumbing
Product Details
- Intended for intermittent duty cycles; not recommended for continuous duty service due to limited motor brush life.
- Not for use with flammable fluids (including gasoline, kerosene, fuel oil) and not for use in an explosive environment.
- Recommended inlet protection: use a minimum 40 mesh strainer or filter in the pump inlet line.
- If a check valve is installed in the plumbing, it must have a cracking pressure of no more than 2 PSI (0.14 bar).
- Recommended tubing: minimum 3/8 inch ID and at least 20 inches in length; do not crimp or kink the tubing.
- Wiring note (12V DC): red lead to battery plus terminal, black lead to battery minus terminal; use T6 AWG wire minimum and a fuse to protect system wiring and components.
Available Parts
- Motor: Catalog # 02009-015 (12V DC TEFC motor with standard shaft)
- Lower housing kit: Catalog # 21022-112 (Buna diaphragm, 2 cam, nylon, LP)
-
