ID
1342052
$ 3,646.93
1-2 weeks delivery time
-
+
Zipwake Stabilizer Kit KB300-S Chine is a dynamic trim and stabilization system providing automatic control of trim, heel, and roll up to 60 knots using integrated gyro and GPS sensors. The kit includes one pair of chine interceptors, control unit, distribution box, and cabling, supports up to six interceptors, and suits boats 10–50 ft. Each interceptor has 30 mm stroke, 300 mm width, 149 mm height, weighs 2.2 kg, and operates on 32 V. Brand Zipwake, article 2011732.
- Description
- Ask a Question
-
Zipwake 2011732 - Stabilizer Kit KB300-S Chine
ZIPWAKE S Series Dynamic Control System is a modern stabilizer solution designed to deliver precise, intuitive, and user-friendly control of trim, heel, and roll while underway. This advanced system is widely used as standard or optional equipment by leading boat manufacturers.
The system automatically adjusts operating parameters to reduce drag and improve performance and onboard comfort at speeds of up to 60 knots. Thanks to its integrated gyrometric sensor and GPS, roll is automatically eliminated, keeping the vessel level and ensuring smooth, balanced turns.
The integrator version enables full control through a central black box connected to onboard multifunction displays, smartphones, and tablets. When used alone, it provides a clean dashboard layout and can support up to three control panels.
Each kit supports expansion with up to two additional pairs of S Series interceptors, allowing a total of six interceptors managed by the controller.
Kit Contents

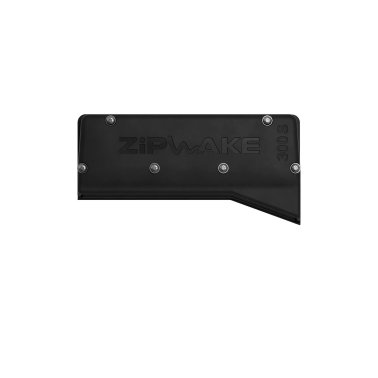

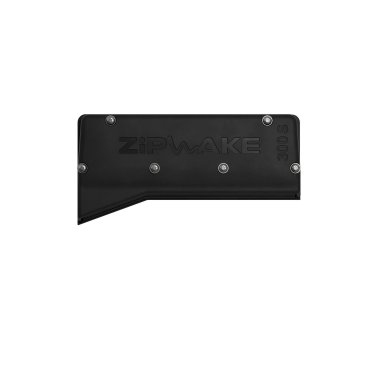

- One pair of interceptors
- Integrator controller or enclosure (integrator version)
- Distribution box
- Control unit with 7 m cable
- Distribution box with 4 m power cable
- Interceptors with 3 m cable, through-hull fittings, and protective sheaths
Technical Data (Per Interceptor)
Power Consumption 25 W Stroke 30 mm Height 149 mm Width 300 mm Recommended Boat Length 10–50 Model Control Panel Maximum Speed 60 Weight 2.2 kg Voltage 32 V
Brand: Zipwake
Article: 2011732 -
