ID
1342059
$ 3,810.04
1-2 weeks delivery time
-
+
Zipwake 600E Interceptor with 3 m cable is part of the E Series designed for boats 40–100 ft, offering automatic trim, pitch, and roll control with fast response. It features robust modular construction, dual servos, and simplified installation. Specifications include 60 mm stroke, 600 mm width, 175 mm height, weight 7.3 kg, and 12–32 V operation. Brand Zipwake, article 2012018.
- Description
- Ask a Question
-

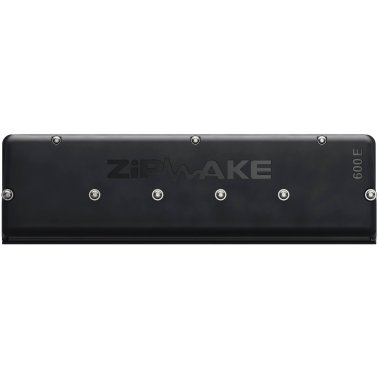

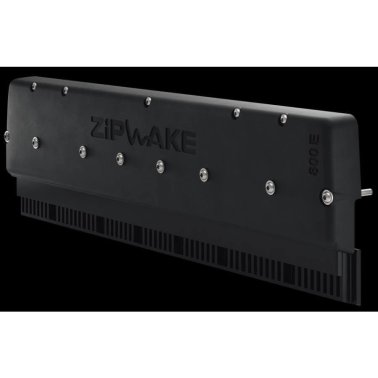

Zipwake 2012018 - 600E Interceptor With 3m Cable
The ZIPWAKE E Series Dynamic Trim Control System represents an advanced evolution of the S Series, featuring a family of large, robust, and fast-acting interceptors specifically engineered for boats between 50 and 100 feet.
The system provides intuitive 3D control through a large display, giving the helmsman precise and user-friendly management of trim, pitch, and roll. Fully automatic operation significantly enhances performance, fuel efficiency, comfort, and onboard safety by dynamically eliminating pitch and roll.
Interceptor Design And Installation
The E Series includes upright, tunnel, and bilge interceptor models. Blade speed is 40 mm/s with a stroke of 60 mm, ensuring rapid response and stability. Durable modular construction ensures reliability while reducing maintenance and downtime.
Each interceptor uses two submersible electric servos with natural water cooling, operating on 12–32 V. Installation is simplified with an integrated mounting plate and self-sealing through-hull cable routing. Every unit is supplied with a through-hull cable connection, cable cover, and drilling template.
For optimal performance, interceptors of different widths can be combined to maximize transom coverage.
Technical Data
Stroke 60 mm Height 175 mm Width 600 mm Recommended Boat Length 40–100 ft Maximum Speed 60 nds Weight 7.3 kg Voltage 12–32 V
Brand: Zipwake
Article: 2012018 -
