ID
1300354
$ 528.02
1-2 weeks delivery time
-
+

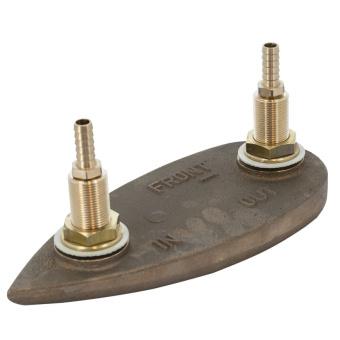

The Vetus ELINEKC Keel Cooler Element is a robust and efficient heat exchanger designed for use in closed-circuit cooling systems of Vetus E-LINE electric propulsion motors. Constructed from high-grade G-CuSn10Zn bronze alloy, it provides excellent corrosion resistance in both saltwater and muddy conditions. Equipped with 13 mm hose fittings, the ELINEKC ensures secure connection and optimal coolant flow. Capable of dissipating heat for motors up to approximately 12 kW, it delivers reliable and maintenance-free thermal management in demanding marine environments.
- Description
- Ask a Question
-
Vetus ELINEKC Keel Cooler Element – 13 mm Fittings for Closed-Circuit Cooling Systems
The Vetus ELINEKC Keel Cooler Element is a high-performance marine heat exchanger designed for the closed-loop cooling systems of Vetus E-LINE electric propulsion motors. Engineered to operate efficiently in saltwater and muddy environments, it forms a critical part of the Vetus EDKCSET Closed Keel Cooling System, ensuring consistent thermal regulation without exposure to external contaminants.
Constructed from G-CuSn10Zn marine-grade bronze alloy, the ELINEKC offers exceptional resistance to corrosion and mechanical wear. Its internal coolant channels are optimized to transfer heat efficiently from the motor and controller into the surrounding water through the hull-mounted keel cooler. When combined with a EIP40SET circulation pump, the ELINEKC provides smooth and silent operation for electric propulsion systems up to 12 kW.
Key Features
- High-efficiency keel cooler element for closed-loop electric motor cooling
- Designed for Vetus E-LINE electric propulsion systems
- G-CuSn10Zn bronze construction ensures long-term durability in salt or muddy water
- 13 mm hose fittings for secure and leak-free coolant connections
- Cooling capacity suitable for motors up to 12 kW
- Compatible with EIP40SET 12V circulation pump
- Part of the EDKCSET Closed Keel Cooling System
- Prevents corrosion and contamination common in open cooling systems
- Maintenance-free design with no moving parts
Technical Specifications
Parameter Value Product Code ELINEKC Manufacturer Vetus Purpose Keel-mounted heat exchanger for closed-loop cooling systems Material G-CuSn10Zn (marine-grade bronze alloy) Cooling Capacity Approx. 12 kW @ 25°C water temperature, 6 L/min flow Fitting Size 13 mm hose connections Compatible Pump EIP40SET Electric Circulation Pump Coolant Type VOC (Vetus Organic Coolant) Installation Type External hull-mounted keel cooler Recommended System EDKCSET Closed Keel Cooling System Maintenance Requires periodic inspection; no moving parts Suitable Environments Saltwater and muddy water conditions
Applications
- Closed-circuit cooling for Vetus E-LINE electric propulsion systems
- Marine installations operating in saltwater or muddy water conditions
- Integration with EDKCSET systems for corrosion-free, low-maintenance cooling
The Vetus ELINEKC Keel Cooler Element provides reliable, efficient, and silent cooling performance for electric propulsion systems. Built from durable bronze alloy and equipped with standard 13 mm fittings, it ensures long-term operation, energy efficiency, and system safety across a wide range of marine environments.
-
