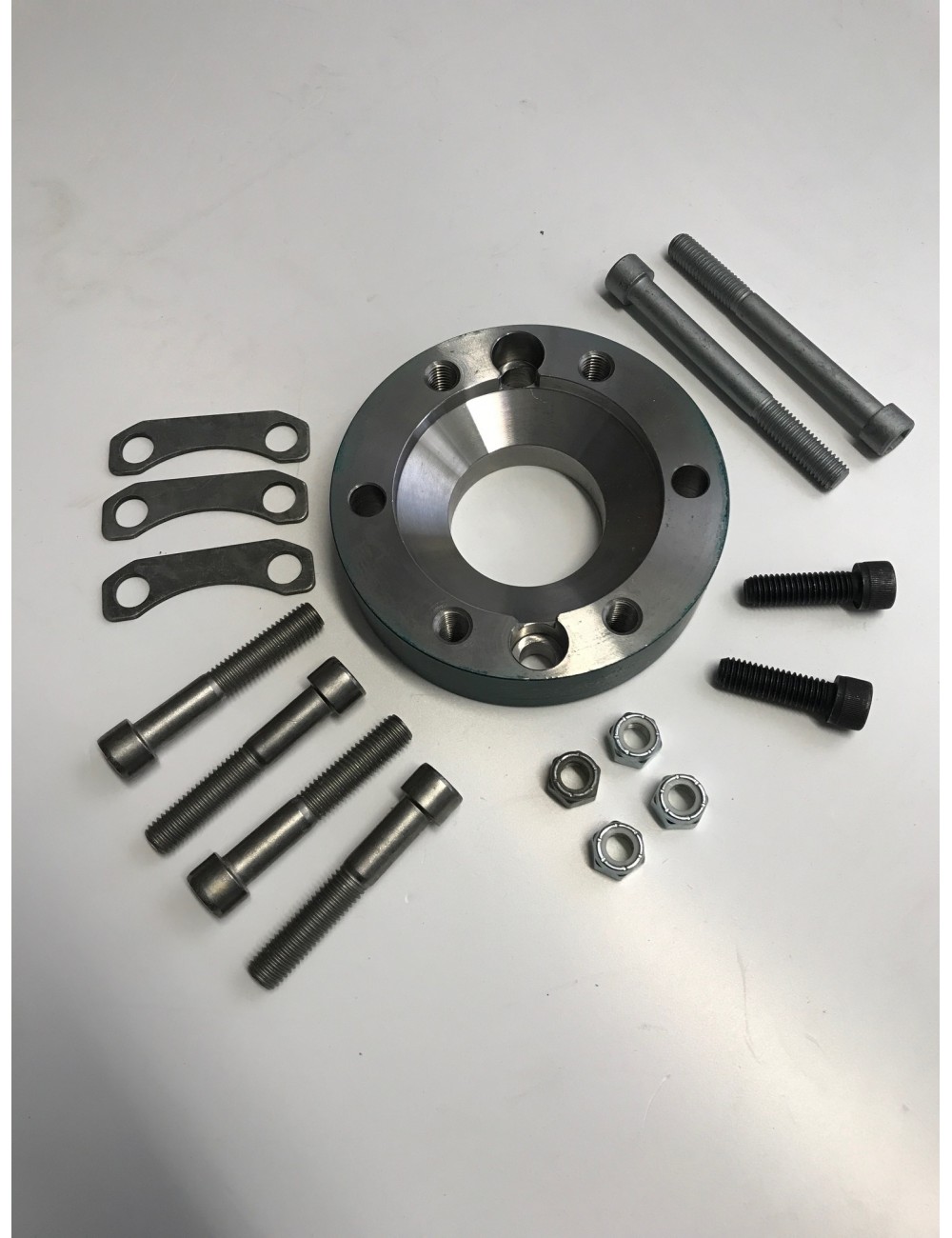

Aquadrive 6040502 – CV30 Adapter Flange 5.75" for ZF IRM301A, ZF HSW450H2 and PRM 500/750/1000 Gearboxes

ID 1351248

$ 649.33

1-2 weeks delivery time

- +

Add to cart

The Aquadrive 6040502 CV30 Adapter Flange 5.75" connects Aquadrive CV30 propulsion systems to ZF IRM301A, ZF HSW450H2 and PRM 500 / 750 / 1000 marine gearboxes. Adapter dimensions: D 156 mm, PC/d 120.7 / 13, Q 6 / 60°, B/M1 76.2 / (-4), Le 38 mm, Lc 13 mm. Supplied as 1 piece.

Description
Ask a Question

Aquadrive 6040502 – CV30 Adapter Flange 5.75" for ZF IRM301A, ZF HSW450H2 and PRM 500 / 750 / 1000 Gearboxes

The Aquadrive 6040502 Adapter Flange is designed to connect Aquadrive propulsion systems with compatible marine gearboxes. It provides a precise mechanical interface between the gearbox output flange and the Aquadrive constant velocity drivetrain assembly.

This adapter flange is engineered for Aquadrive CV30 propulsion systems and is compatible with ZF IRM301A, ZF HSW450H2 and PRM 500, PRM 750 and PRM 1000 marine gearboxes. Precision-machined mounting geometry ensures proper drivetrain alignment and reliable installation within marine propulsion systems.

Using the correct Aquadrive adapter flange ensures proper integration of the gearbox with the Aquadrive thrust bearing and constant velocity shaft assembly. This helps maintain smooth torque transmission and reduces stress caused by drivetrain misalignment.

Key Features

Adapter flange for Aquadrive CV30 propulsion systems
5.75" gearbox flange interface
Precision-machined mounting geometry
Designed for marine propulsion drivetrain installations
Compatible with several ZF and PRM marine transmissions

Compatible Gearboxes

ZF IRM301A
ZF HSW450H2
PRM 500
PRM 750 (models 265, 310, 401, 601)
PRM 1000

Technical Specifications

Product Name	Aquadrive CV30 Adapter Flange
Product Number	6040502
CV Size	CV30
Flange Size	5.75"
D	156 mm
PC/d	120.7 / 13
Q	6 / 60°
B / M1	76.2 / (-4)
Le	38 mm
Lc	13 mm
Compatible System	Aquadrive CV30
Brand	Aquadrive
Sales Unit	1 piece
