ID
1386060
$ 938.55
1-2 weeks delivery time
Item:
- 350 mm
- 324 mm
- 250 mm Max. 200N
Linak BL1H compact three-section lifting column for electric table and seat adjustment systems, available in 12V and 24V DC versions. The series provides up to 2000 N lifting force and includes 12V configurations with 350 mm or 324 mm specification, plus a 24V version with 400 mm stroke and 5A current consumption. The 12V versions support parallel operation with up to two columns.
- Description
- Ask a Question
-

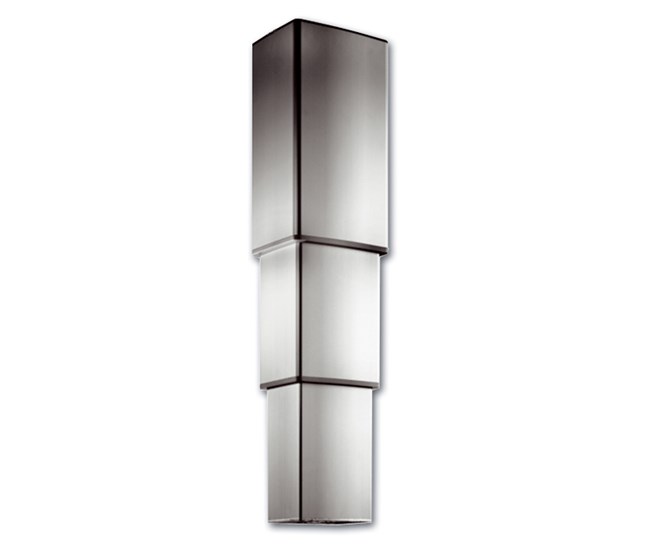

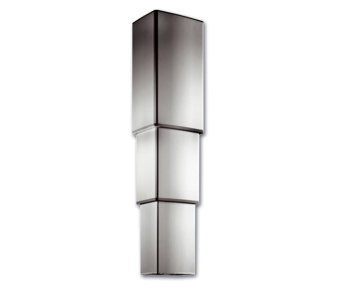

Linak BL1H Lifting Column 12V / 24V up to 2000N
The Linak BL1H is a compact three-section lifting column designed for electric adjustment applications such as tables and seats. Its telescopic construction combines a long stroke capability with high stability, while the internal chain-driven mechanism provides low-noise operation.
The BL1H series is available in 12V and 24V DC configurations. The 12V versions are suitable for indoor and outdoor applications and support parallel operation with up to two lifting columns. They provide a maximum axial force of 2000 N and a maximum speed of 18 mm/s.
The 24V version provides a maximum load capacity of 200 kg, a 400 mm stroke length and operates at 5A.
Key Features
- Three-section telescopic lifting column
- Designed for electric table and seat adjustment applications
- 12V and 24V DC versions available
- Maximum axial force: 2000 N
- Maximum load: 200 kg
- 12V versions support parallel operation with up to 2 columns
- Maximum speed for 12V versions: 18 mm/s
- Low-noise chain-driven mechanism
- 12V versions supplied with 2 m motor cable and mounting bolts
Available Versions
Product Number Voltage Current Stroke / Configuration Max. Load / Force 036404.N 12V DC - 350 mm 2000 N 036406.N 12V DC - 324 mm 2000 N 036403 24V DC 5A 400 mm stroke 200 kg / 2000 N
Product Codes
- 036404.N – Linak BL1H 12V, 350 mm configuration
- 036406.N – Linak BL1H 12V, 324 mm configuration
- 036403 – Linak BL1H 24V DC, 5A, 400 mm stroke, max. 2000 N – EAN 8720193015125
-
