ID
1303253
$ 1,016.35
1-2 weeks delivery time
-
+
The Isotemp 6P4083SPA0003 Spa 40L HD heater features an 11-gallon stainless-steel inner tank, polypropylene casing, a high-power 115V/1200W immersion heater, 6-bar safety valve, integrated mixing valve and USA plug. With 26" length and 15.4" OD, it delivers fast heating performance and reliable hot-water supply for larger onboard systems.
- Description
- Ask a Question
-

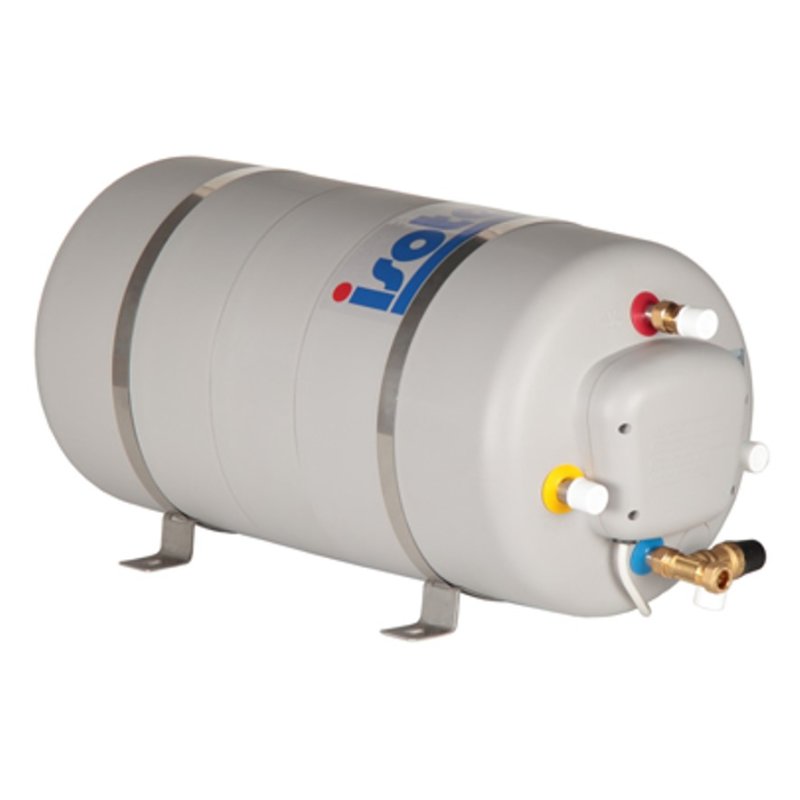

Isotemp 6P4083SPA0003 Spa 40L Marine Water Heater 115V / 1200W (HD) with Safety Valve, Mixing Valve and USA Plug
The Isotemp 6P4083SPA0003 Spa 40L (11-gallon) heavy-duty marine water heater is engineered for installations requiring rapid hot-water recovery and high thermal performance. The HD configuration incorporates a high-output 115V / 1200W immersion heater, providing significantly faster heat-up times compared to standard 750W versions.
Built with a corrosion-resistant stainless-steel inner tank and a durable polypropylene outer casing, this heater meets high marine quality standards. Integrated safety features include a 6 bar safety valve and a thermostat-controlled mixing valve for consistent outlet temperature. A USA plug is pre-installed for direct connection to onboard 115V AC systems.Key Features
- 40-liter (11-gallon) Spa-series heavy-duty marine water heater.
- High-power 115V / 1200W immersion heating element.
- Stainless-steel inner tank for long-term corrosion protection.
- Robust polypropylene outer casing.
- Integrated 6 bar safety valve for system overpressure protection.
- Thermostat-regulated mixing valve included.
- Supplied with USA plug for 115V AC onboard electrical systems.
- Cylindrical design optimizes use of space in technical compartments.
Technical Specifications
Part Number 6P4083SPA0003 Series Isotemp Spa Water Heaters – HD Version Capacity 40 L / 11 gallons Voltage / Power 115V AC / 1200W (HD) Inner Tank Material Marine-grade stainless steel Outer Casing Polypropylene Safety Valve Included – 6 bar Mixing Valve Included – thermostat-controlled Electrical Plug USA plug (115V) Dimensions Length: 26 in
Outside Diameter (OD): 15.4 inUnit Weight Approx. 35 lbs Volume (Cubic Feet) 11
Installation and Applications
- Ideal for vessels requiring fast hot-water production and HD heating capability.
- Suitable for large sailboats, cruising yachts and motor vessels.
- Cylindrical design fits engine rooms, service lockers and technical compartments.
- Engineered for 115V onboard electrical systems with the included USA plug.
Included in the Package
- Isotemp Spa 40L HD water heater (6P4083SPA0003)
- High-power 115V / 1200W immersion heater
- 6 bar safety valve
- Thermostat-controlled mixing valve
- USA plug (factory installed)
- Installation and safety documentation
The Isotemp Spa 40L HD 115V / 1200W delivers rapid heat-up performance, excellent durability and complete safety integration, making it a strong choice for demanding marine hot-water installations where quick recovery and reliability are essential.
Documents
Isotemp SPA Water Heater Manual Size: 6,3 Mb -
