ID
1303254
$ 1,194.46
1-2 weeks delivery time
-
+
The Isotemp 6P40B1SPA0003 Spa 40L HD marine heater includes an 11-gallon stainless-steel tank, polypropylene casing, a high-power 230V/1200W immersion heater, 6-bar safety valve, integrated mixing valve and European plug. With dimensions of 26" length and 15.4" OD, it provides fast heat-up performance and reliable hot-water output for demanding onboard installations.
- Description
- Ask a Question
-

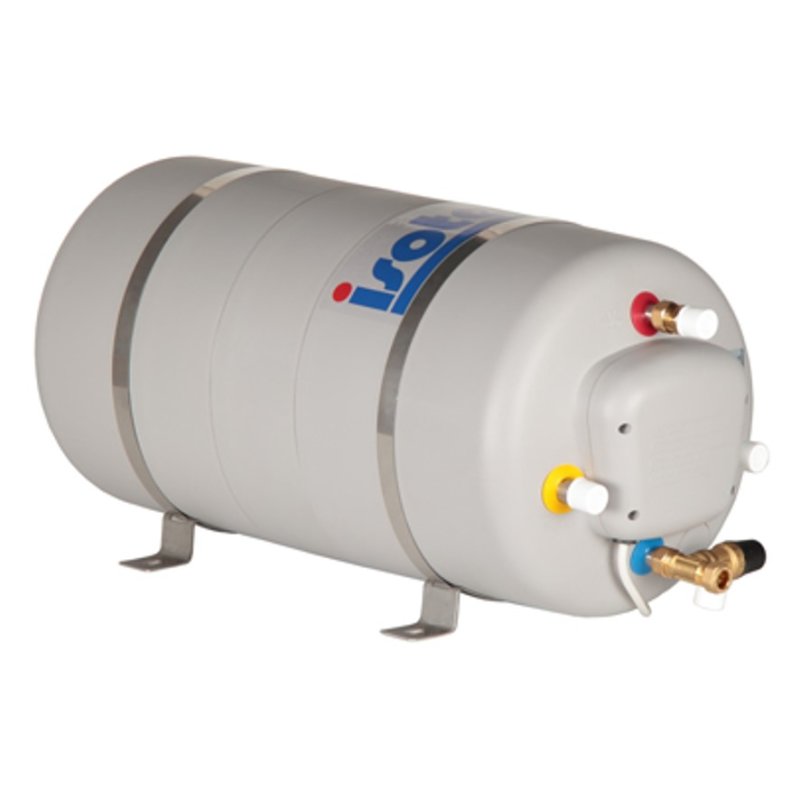

Isotemp 6P40B1SPA0003 Spa 40L Marine Water Heater 230V / 1200W (HD) with Safety Valve, Mixing Valve and European Plug
The Isotemp 6P40B1SPA0003 Spa 40L (11-gallon) heavy-duty marine water heater is designed for fast and efficient onboard hot-water production. The HD configuration features a high-output 230V / 1200W immersion heating element, offering significantly faster heat-up times compared to standard 750W models in the Spa range.
The heater uses a corrosion-resistant stainless-steel inner tank for long service life, paired with a durable polypropylene outer casing for improved impact resistance and reduced weight. This model includes a 6 bar safety valve for reliable overpressure protection and a thermostat-controlled mixing valve that stabilizes the temperature of the outgoing water. A European plug is preinstalled for seamless integration with 230V onboard electrical systems.Key Features
- 40-liter (11-gallon) Spa-series heavy-duty marine water heater.
- High-power 230V / 1200W immersion heating element.
- Stainless-steel inner tank ensures long-term corrosion resistance.
- Polypropylene outer casing for impact resistance and durability.
- Includes 6 bar safety valve for overpressure protection.
- Thermostat-controlled mixing valve for stable outlet temperature.
- Factory-installed European plug for 230V AC systems.
- Compact cylindrical layout suitable for marine installation spaces.
Technical Specifications
Part Number 6P40B1SPA0003 Series Isotemp Spa Water Heaters – HD Version Capacity 40 L / 11 gallons Voltage / Power 230V AC / 1200W (HD) Inner Tank Material Marine-grade stainless steel Outer Casing Polypropylene Safety Valve Included – 6 bar rating Mixing Valve Included – thermostat-regulated Electrical Plug European plug (230V) Dimensions Length: 26 in
Outside Diameter (OD): 15.4 inUnit Weight Approx. 35 lbs Volume (Cubic Feet) 11
Installation and Applications
- Ideal for yachts, sailboats and motor cruisers requiring fast water heating.
- High-power HD element is suited for multi-shower and multi-sink hot-water systems.
- Cylindrical form fits engine rooms, lockers and technical compartments.
- Designed for 230V European onboard electrical networks.
Included in the Package
- Isotemp Spa 40L HD water heater (6P40B1SPA0003)
- High-power 230V / 1200W immersion heater
- 6 bar safety valve
- Thermostat-regulated mixing valve
- European plug (installed)
- Installation and safety documentation
The Isotemp Spa 40L HD 230V / 1200W delivers powerful heating performance, integrated safety features and marine-grade durability, making it an excellent choice for demanding onboard hot-water systems.
Documents
Isotemp SPA Water Heater Manual Size: 6,3 Mb -
