The Isotherm C320ANEIA1C111AA Cruise CR320 Combi Line is a hybrid stainless steel refrigeration unit offering a total capacity of 320 liters. It combines a 160L top fridge with a dual 160L drawer section configurable as fridge, freezer, or mixed use. Featuring two advanced compressors (BD35F + Secop AC) and a right-hand door swing, it ensures powerful cooling, low noise, and high efficiency. Designed for 12/24V DC operation, with optional AC/DC setup, and includes a 3-side flush mounting frame for seamless marine installation.
- Description
- Ask a Question
-

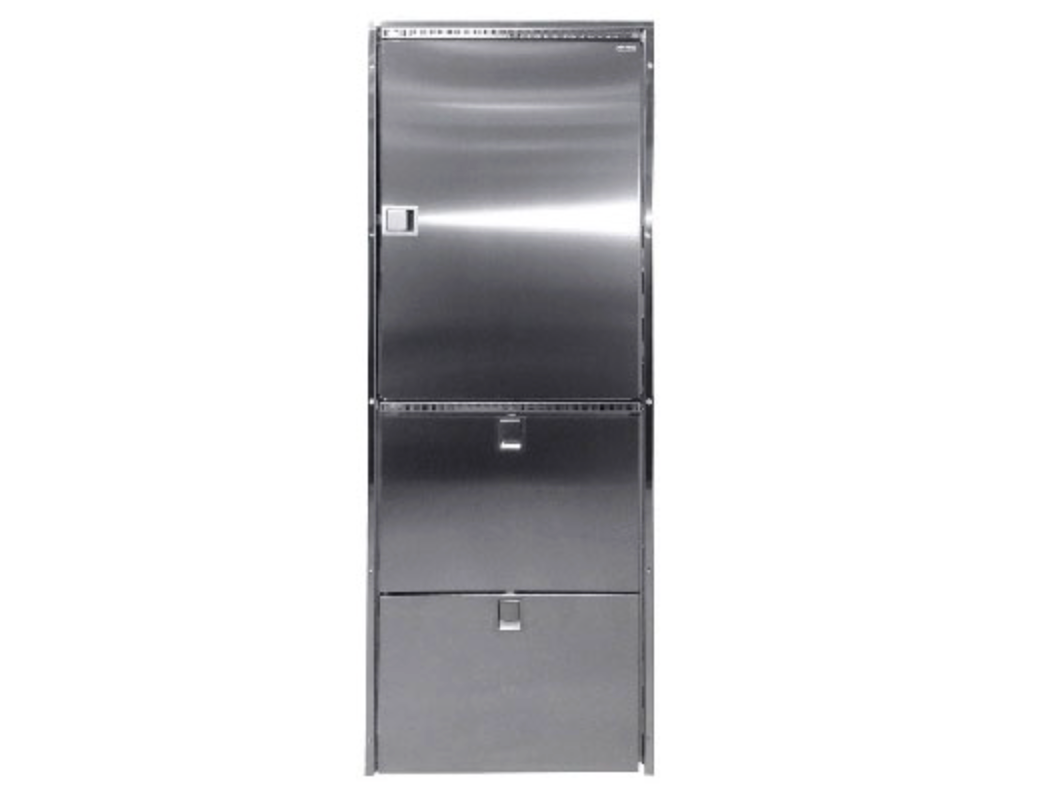

Isotherm C320ANEIA1C111AA – Cruise CR320 Combi Line Stainless Steel Fridge/Freezer 12/24V

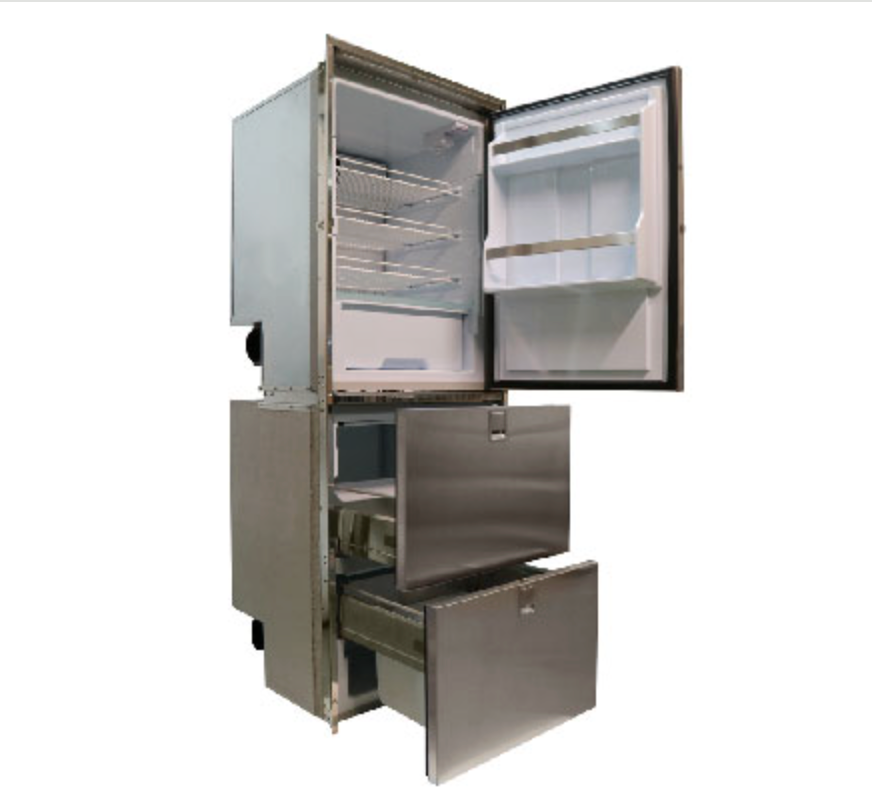

The Isotherm Cruise CR320 Combi Line represents the ultimate in large-capacity marine refrigeration. Built from premium stainless steel (Inox), this hybrid unit combines a CR160 Drink fridge on top with a DR160 double-drawer section below, offering exceptional versatility for extended cruising or yacht installations. Each drawer can be configured as a fridge, freezer, or mixed combination to match your needs.
Equipped with two compressors – a BD35F 12/24V DC for the top fridge and a Secop AC compressor for the drawer unit – the CR320 ensures high efficiency, quiet performance, and reliability even under demanding marine conditions. The system comes with a right-hand door swing and a 3-side flush mounting frame for an elegant built-in look. Optional left-hand door opening and AC/DC versions are available.
Key Features
- Total capacity: 320 liters (160L fridge + 160L drawer section)
- Modular configuration: fridge/freezer/mixed drawer setup
- Stainless steel (Inox) construction for marine durability
- Dual compressors – BD35F (DC) and Secop AC
- 12/24V DC operation (optional AC/DC)
- 3-side flush mounting frame included
- Right-hand door swing (optional left-hand)
- Low noise and energy-efficient cooling system
Technical Specifications
Parameter Specification Model C320ANEIA1C111AA Type Fridge/Freezer Combination (Combi Line) Total Capacity 320 L Top Compartment 160 L CR160 Drink fridge Bottom Drawers DR160 – configurable as fridge, freezer, or mixed Voltage 12/24V DC (optional AC/DC) Power Consumption 1630 Wh / 24h @ 12V, +25°C ambient Compressors 1 × Danfoss BD35F (DC), 1 × Secop AC Mounting 3-Side Flush Mount Frame (included) Door Swing Right-hand (optional left-hand) Material Stainless Steel (Inox) Weight 95 kg Dimensions (W × H × D) 628 × 1790 × 610 mm
Applications
- Large yachts and long-distance cruising vessels
- Luxury motorboats and catamarans
- Marine kitchens requiring high-capacity refrigeration
The Isotherm C320ANEIA1C111AA Cruise CR320 Combi Line delivers exceptional storage capacity, dual-zone flexibility, and premium stainless-steel design — a perfect solution for marine professionals demanding performance and style.
Documents
Isotherm Cruise 320 Manual Size: 5,3 MbIsotherm Cruise 320 Fridge Freezer Spare Parts List Size: 2,5 MbIsotherm Cruise 320 Fridge Fridge Spare Parts List Size: 2,6 Mb -
