ID
1296235
$ 9,101.68
1-2 weeks delivery time
-
+
The Isotherm C320ANEIA1B111AA Cruise CR320 Combi Line is a hybrid stainless steel refrigeration unit with a total capacity of 320 liters, featuring a 160L top fridge, a 95L upper drawer fridge, and a 65L lower drawer freezer. Designed for 12/24V DC operation, it is equipped with two fan-cooled compressors (BD35F and BD80F) to ensure powerful and efficient cooling performance. Delivered with a 3-side flush mounting frame and a right-hand door swing, it combines elegant design, large capacity, and marine-grade reliability for yachts and long-range vessels.
- Description
- Ask a Question
-

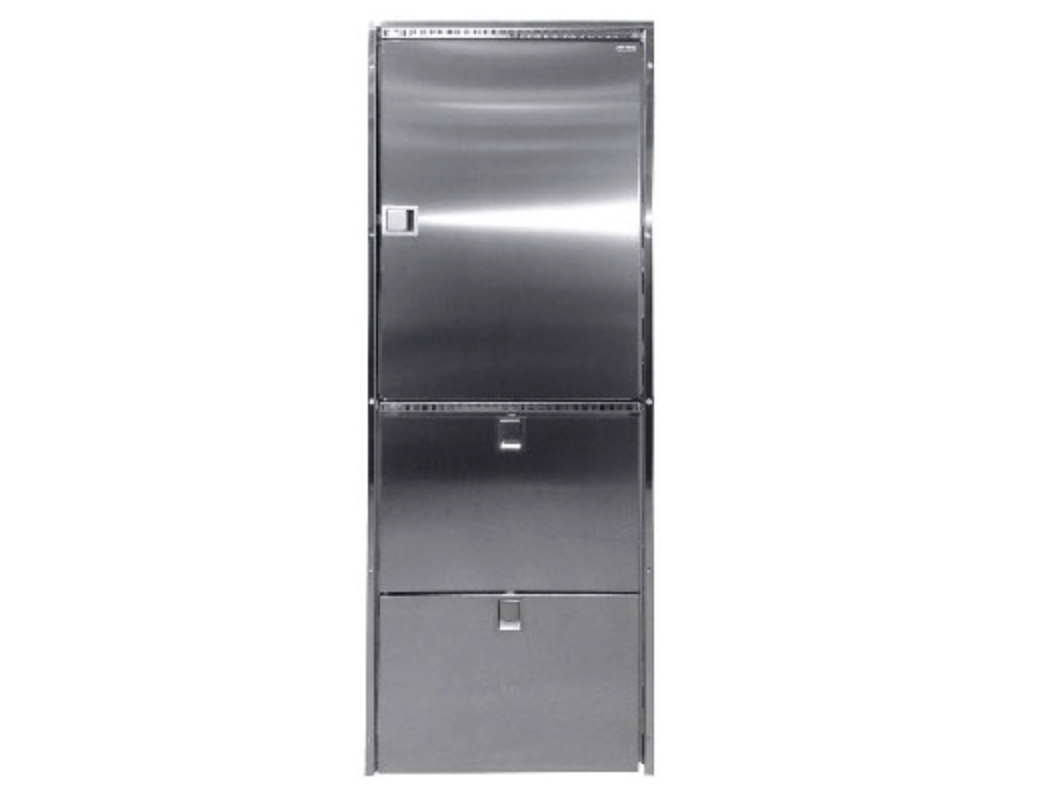

Isotherm C320ANEIA1B111AA – Cruise CR320 Combi Line Stainless Steel Fridge/Freezer 12/24V

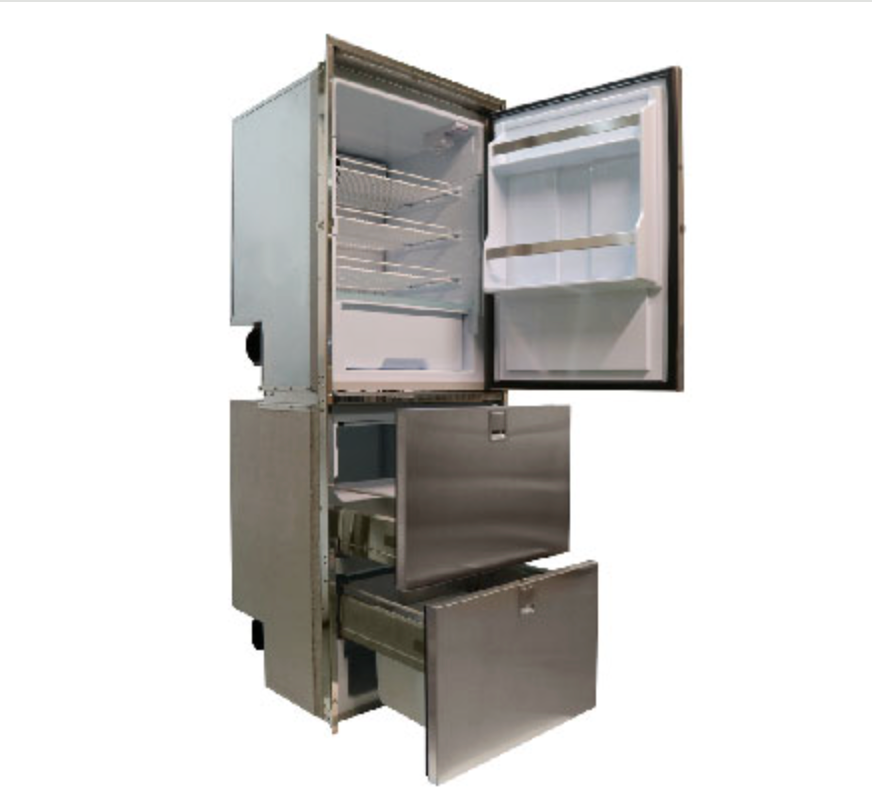

The Isotherm Cruise CR320 Combi Line is a high-capacity stainless steel refrigerator-freezer designed for professional marine and yacht installations. With a total volume of 320 liters, it combines a 160L top refrigerator with a DR160 double-drawer section, configured as a 95L fridge in the upper drawer and a 65L freezer in the lower drawer. This hybrid design delivers exceptional flexibility, performance, and aesthetic appeal for modern onboard galleys.
Powered by two fan-cooled compressors – a Danfoss BD35F for the top fridge and a BD80F for the drawer section – the CR320 provides efficient and reliable 12/24V DC operation. The unit comes standard with a right-hand door swing and a 3-side flush mounting frame for seamless integration. Optional left-hand opening and AC/DC versions are available for added flexibility.
Key Features
- Total capacity: 320 liters (160L top fridge + 95L fridge drawer + 65L freezer drawer)
- Hybrid configuration for optimal storage flexibility
- Stainless steel (Inox) construction – durable and corrosion-resistant
- Dual compressor system: BD35F (fridge) and BD80F (freezer)
- Independent thermostats for precise temperature control
- 12/24V DC operation (optional AC/DC version available)
- Right-hand door swing (optional left-hand)
- 3-side flush mounting frame included
- Quiet, efficient, and marine-grade performance
Technical Specifications
Parameter Specification Model C320ANEIA1B111AA Type Fridge/Freezer Combination (Combi Line) Total Capacity 320 L Fridge Capacity 160 L (top cabinet) + 95 L (upper drawer) Freezer Capacity 65 L (lower drawer) Voltage 12/24V DC Power Consumption Approx. 1630 Wh / 24h @ 12V, +25°C ambient Compressors 1 × Danfoss BD35F (fridge), 1 × BD80F (freezer) Mounting 3-Side Flush Mount Frame (included) Door Swing Right-hand (optional left-hand) Material Stainless Steel (Inox) Weight 95 kg Dimensions (W × H × D) 628 × 1790 × 610 mm
Applications
- Luxury yachts and long-distance cruising vessels
- Marine galleys requiring high-capacity refrigeration
- Off-grid or RV applications needing dual-zone cooling
The Isotherm C320ANEIA1B111AA Cruise CR320 Combi Line delivers large capacity, modular versatility, and proven Isotherm reliability — the perfect choice for demanding marine refrigeration needs.
Compatible accessory: Power Pack 2 × SEH00017HA
Documents
Isotherm Cruise 320 Manual Size: 5,3 MbIsotherm Cruise 320 Fridge Freezer Spare Parts List Size: 2,5 MbIsotherm Cruise 320 Fridge Fridge Spare Parts List Size: 2,6 Mb -
