The VDO ViewLine digital hour counter and voltmeter instrument (B00006303) combines run-time tracking with voltage monitoring for engine monitoring and general electrical-system supervision on 9–48 V DC installations. Built around a 52 mm mounting size with a distinctive white triangular bezel and double anti-fog plastic lens, it delivers clear digital readouts, amber LED dial illumination, and reliable analog operation with a positive feed via the ignition switch—ideal for planning maintenance intervals and confirming charging-system stability.
- Description
- Ask a Question
-

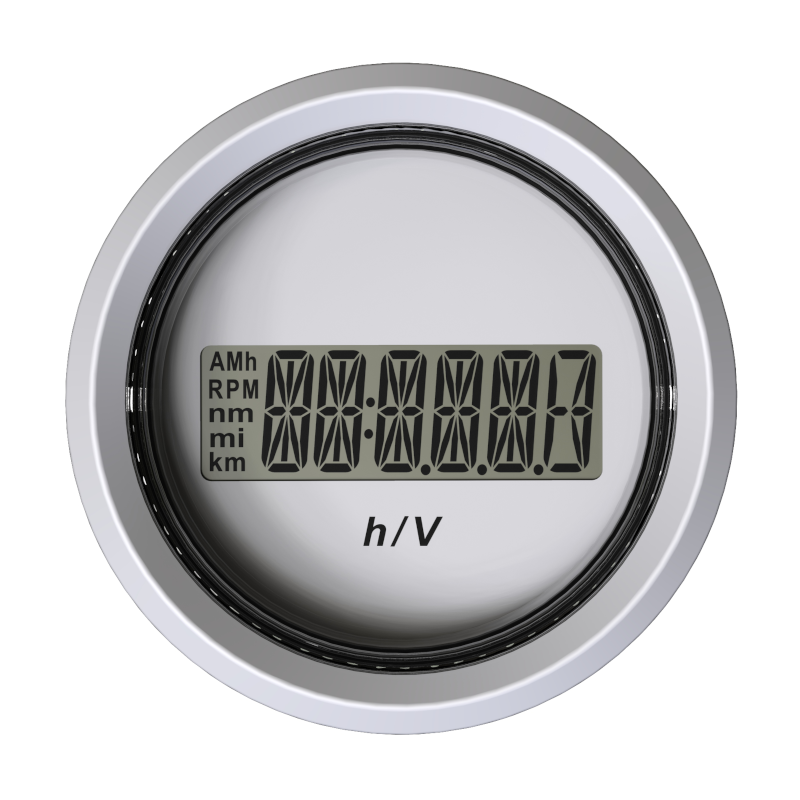

ViewLine Digital Hour Counter and Voltmeter Instrument 9–48 V 52 mm
The VDO B00006303 ViewLine combination gauge integrates a digital hour counter and voltmeter in one compact 52 mm instrument for engine monitoring and electrical-system checks. Designed for 9–48 V DC environments, it helps track operating time for maintenance planning while continuously displaying system voltage to support charging and battery diagnostics. A double anti-fog plastic lens, white front, and triangular white bezel deliver a clean, modern look with consistent readability.
Compatibility
- Veratron Engine Monitoring applications
Product Details
- Brand: VDO
- Series: Veratron ViewLine Retail
- Instrument Type: Digital hour counter / voltmeter combination
- Mounting: Central spinlock nut, 52 mm
- Input: Positive supply via ignition switch (analog)
- Connector Type: Tyco 8-pin MQS
Technical Specifications
Part Number B00006303 Measurement Range 0–99999.9 h; 9–48 V DC Operating Voltage 9–48 V DC Installation Diameter 52 mm (2 1/16 inch) Front Color White Bezel White triangle, clip-on Lens Double plastic, anti-fog Dial Illumination Amber LED, not dimmable Ingress Protection (Front) IP67 (IEC 60529) Ingress Protection (Rear) IP52 (IEC 60529) Weight 0.40 kg EAN Code 7640178729292
Features
- Dual-function display combines operating hours and voltage for quick system checks.
- Supports maintenance planning by tracking engine or equipment run time up to 99999.9 hours.
- Charging-system visibility with an integrated voltmeter for 9–48 V DC systems.
- Clear readability with a double anti-fog lens and amber LED illumination.
- Robust for demanding installations with IP67 front protection and secure 52 mm mounting hardware.
-
