ID
988926
$ 592.62
1-2 weeks delivery time
-
+
The VDO B00041401 NMEA 2000 capacitive liquid level sensor provides accurate, full-range tank level reporting for depths adjustable from 600 mm to 1200 mm, making it ideal for modern networked tank monitoring. Designed for fresh and waste water use with per-tank adjustment and an adjustable warning contact, it uses capacitance measurement technology for linear level data and connects plug-and-play via an integrated Micro-C M12 5-pin NMEA 2000 connector, with an IPX9K rating and UL94, CE, REACH, and RoHS compliance for dependable operation as an exposed device.
- Description
- Ask a Question
-

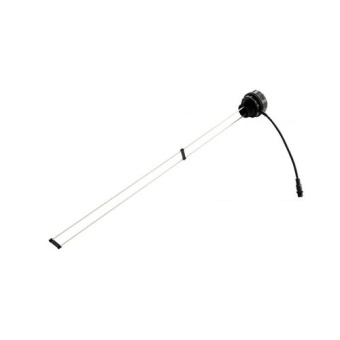

NMEA 2000 Capacitive Tank Level Sensor for 600 to 1200 mm Depth
The VDO B00041401 is a certified NMEA 2000 liquid level sensor designed for reliable tank monitoring across 600 mm to 1200 mm depths. Using capacitance measurement technology, it delivers full-range level linearity (rather than stepped readings), helping you make confident decisions for topping up, pumping, or emptying. With a plug-and-play approach and an integrated Micro-C M12 5-pin connector, it connects directly to the NMEA 2000 backbone so tank levels can be viewed on compatible networked displays.
Compatibility
- Tank depth adjustable from 600 mm to 1200 mm
- Tank materials: Plastic
- Tank materials: Stainless steel
- Tank materials: Aluminium
- Liquids: Shower water
- Liquids: Kitchen water
- Liquids: Toilet
- Liquids: Fresh water
- NMEA 2000 networks and networked displays (integrated Micro-C M12 5-pin connector)
Technical Specifications
Part Number B00041401 Functionality Waste water level Measurement Technology Capacitive Communication / Output NMEA 2000 Level Indication Empty - Half - Full via NMEA 2000 Operating Voltage 6 - 24 V DC Sensor Signal Galvanically isolated Warning Contact Adjustable Thread G 1-1/4 inch male Tank Depth 600 mm - 1200 mm (adjustable) Operating Temperature -30 °C to +70 °C Installation Hole Size 64 mm Sensor Outside Surface Part Diameter 72.5 mm Sensor Net Hole Size 42 mm Mounting Flange 80 mm Sensor Height Above Tank 40 mm Sensor Material Stainless Steel SUS 201 Ingress Protection IPX9K Compliance UL94, CE, REACH, RoHS EAN Code 7640178729391 Weight 1.00 kg
Product Details
- Brand: VDO
- Category: Water level sensors
- Component Type: NMEA 2000 liquid level sensor
- Use Case: Tank level monitoring for waste water and fresh water systems with per-tank adjustment
Features
- Capacitive sensing for full-range level linearity and stable readings
- Adjustable setup to suit different tank depths from 600 mm to 1200 mm
- Integrated plug-and-play NMEA 2000 connection via Micro-C M12 5-pin connector
- Galvanically isolated sensor signal and adjustable warning contact
- IPX9K-rated design suitable for exposed installations and easier cleaning procedures
- Supplied with a gasket kit including a rubber gasket, mounting bracket, screws, and an Allen key
-
