ID
1369933
$ 64.05
1-2 weeks delivery time
-
+

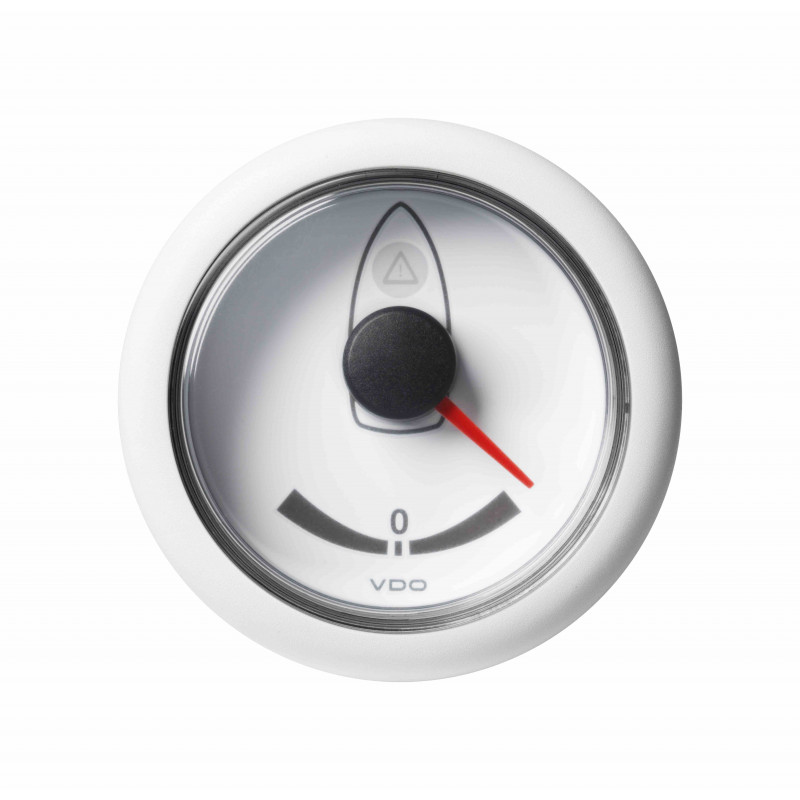

The VDO A2C60001066 ViewLine rudder angle indicator is a marine navigation gauge that shows precise rudder position from -40° to +40° for confident steering feedback at the helm. Built for dashboard integration with a 52 mm installation diameter, it uses an analog 3–180 Ohm input and runs on 12–24 V DC, combining clear readability, amber dial illumination, and a rugged IP-rated design for dependable performance on the water.
- Description
- Ask a Question
-
ViewLine Rudder Angle Gauge for Clear Helm Feedback
The VDO A2C60001066 is a white ViewLine rudder angle indicator designed for marine dashboards, giving the helmsman an instant visual reference of rudder position. With a measurement range of -40° to +40° and an analog input signal, it supports accurate steering feedback during docking, maneuvering, and cruising.
Compatibility
- 12–24 V DC marine electrical systems (Tyco 8-pin connection)
- Rudder angle sender systems with 3–180 Ohm analog signal
- Marine navigation gauge installations with 52 mm (2 1/16 inch) mounting hole
Product Details
- Brand: VDO
- Part Number: A2C60001066
- Component Type: Rudder Angle Indicator (Navigation Gauge)
- Series: ViewLine OEM Bulk
- Dial Color: White
- Bezel: Optional, interchangeable clip-on (order separately)
- Cable: Order separately
Technical Specifications
Measurement Range -40° to +40° Installation Hole Size 52 mm (2 1/16 inch) Operating Voltage 12–24 V DC (Tyco 8-pin) Analog Signal Input 3–180 Ohm Front Protection Class IP67 (IEC 60529) Rear Protection Class IP52 (IEC 60529) Lens Double plastic, anti-fog Dial Illumination Amber LED, not dimmable Warning Light Red LED (control via positive and negative) Mounting Central spinlock nut, 52 mm EAN 7640178723726 Packaging OEM bulk pack (10 pieces) Weight 4.00 kg
Features
- Accurate rudder position indication supports safer maneuvering and docking
- High-visibility 52 mm format for clean, professional helm installations
- IP-rated protection helps the instrument withstand harsh marine environments
- Anti-fog lens and amber backlighting improve readability in changing conditions
- Optional interchangeable bezel lets you match the gauge to your dashboard styling
-
